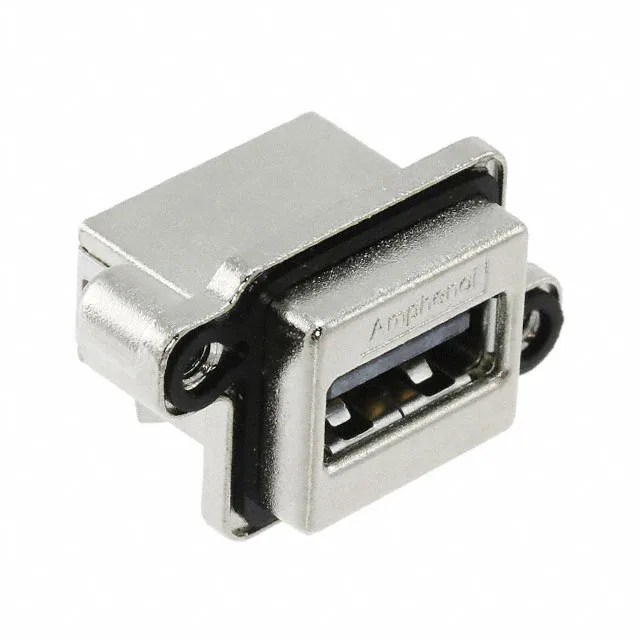

Amphenol ICC MUSBR USB-A receptacle, order code MUSBRA111M0, 4 contacts, USB 2.0, 1.5 A, IP67, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBRA111M0 is a 4-contact USB-A receptacle in Amphenol ICC's MUSBR series, rated USB 2.0 and sealed to IP67 when mated. It carries a 1.5 A current rating per contact with gold-plated mating surfaces and a shielded steel/stainless shell, rated for 1500 mating cycles.
Mounts via panel-mount through-hole right-angle orientation with a horizontal flange and board guide for alignment during assembly.
The MUSBRA111M0 is RoHS Compliant per the manufacturer listing.
