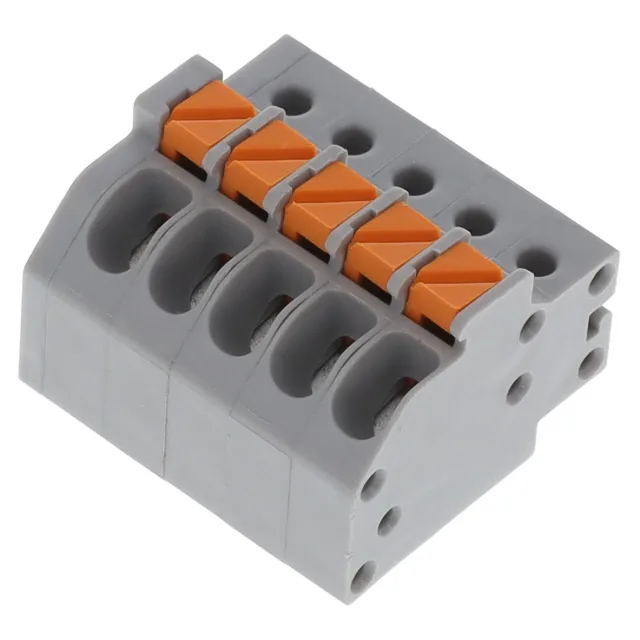

NY series plug for unshrouded header, order code NY0510800000G, 5 positions, single level, 0.138" (3.50mm) pitch, 2 A, 150 V, tin-plated steel contacts, free hanging, 90° wire entry, push-in spring termination, gray thermoplastic housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | NY |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Current - UL | 2 A |
| Plug wire entry | 90° |
| Wire strip length | 9-10mm |
| Wire gauge or range - AWG | 16-22 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Gray |
| Contact material | Steel, Stainless |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The NY0510800000G is the 5-circuit member of the NY series plug for unshrouded header line, accepting 16-22 AWG wire with a 9-10mm strip length. Rated 2 A at 150 V with tin-plated steel contacts, the free-hanging plug uses a push-in spring termination and a 90° wire entry for right-angle cable routing. The gray thermoplastic housing carries a UL94 V-0 flammability rating and operates from -40°C to 115°C.
The NY0510800000G is available to order. Request a quote for current pricing and lead time.
The NY0510800000G is ROHS3 compliant and the housing carries a UL94 V-0 flammability rating.
