Amphenol OQ0253510000G — Header Plugs & Sockets

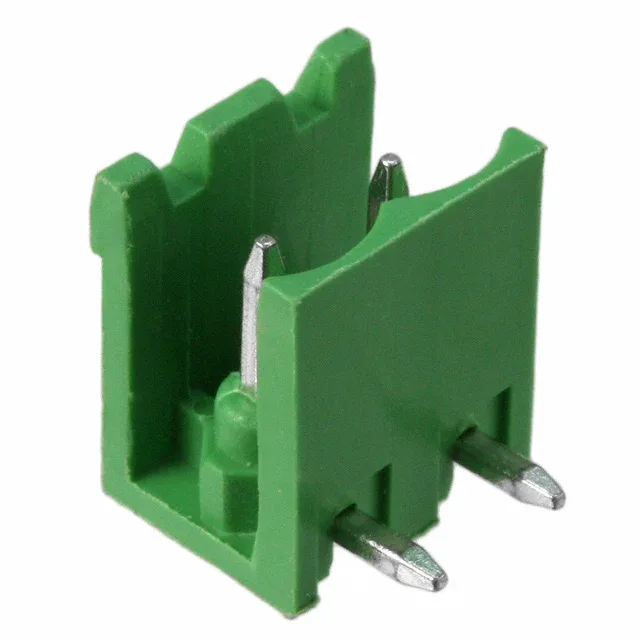

Amphenol OQ0253510000G

MPNOQ0253510000G
Active

TERM BLOCK HDR 2POS 90DEG 5.08MM

$0.6100Ref. price · indicative, final on quote
Amphenol OQ0253510000G datasheet (PDF)
RoHSROHS3 Compliant
Series06-508
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

OQ0253510000G key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (2 Side)
Series06-508
MountingThrough Hole
Voltage - UL300 V
Current - UL12 A
Operating temperature-40°C~115°C
ColorGreen
Contact materialCopper Alloy
Housing materialThermoplastic Resin
Insulation height0.335\" (8.51mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

OQ0253510000G additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin
