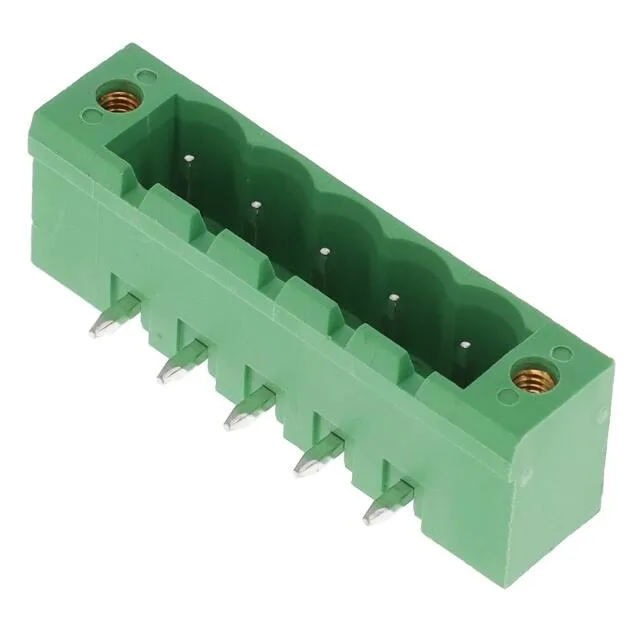

Amphenol OQ05555A000AG
MPNOQ05555A000AG
Active
OQ-5.08- 5P GREEN (RAL6018/T) WI
$1.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOQ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | OQ |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 20 A |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper |
| Housing material | Thermoplastic |
| Insulation height | 0.319\" (8.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.122\" (3.10mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
