0.50 mm Pitch, 12-Position ZIF — Signal-Density Fit

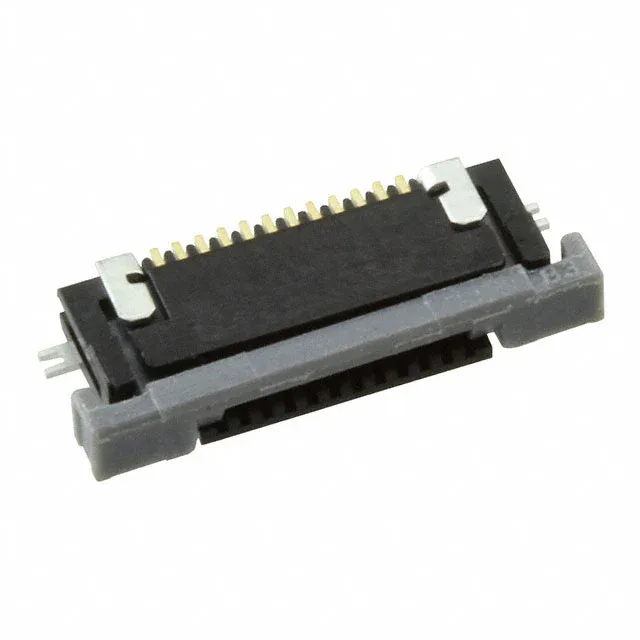

The SFV12R-2STAE1HLF: It uses a zero-insertion-force (ZIF) slide-lock actuator to secure the ribbon without stressing the contacts during insertion. The gold contact finish supports the 20-cycle mating life in environments where oxidation resistance matters. The right-angle SMT orientation and 1.80 mm height above board suit low-profile, board-edge routing where z-height is constrained.
Cable Fit and Termination Checklist
The cable end type is straight or tapered — confirm the ribbon end matches the contact geometry before assembly.
RoHS compliant per.
Peer Comparison — Gold vs Tin, Slide Lock vs Flip Lock
Compared to the SFV12R-2STE9HLF (tin contacts, same slide lock), the SFV12R-2STAE1HLF uses gold contacts — the gold finish adds corrosion margin for humid or mildly corrosive environments at the same 20-cycle rating. Compared to the SFV12R-2STE1HLF (tin contacts, flip lock), this part uses a slide-lock actuator and gold contacts. The slide lock provides a different tactile feedback during latching; the flip lock on the -2STE1HLF may be preferred for tool-less actuation in high-volume assembly.
