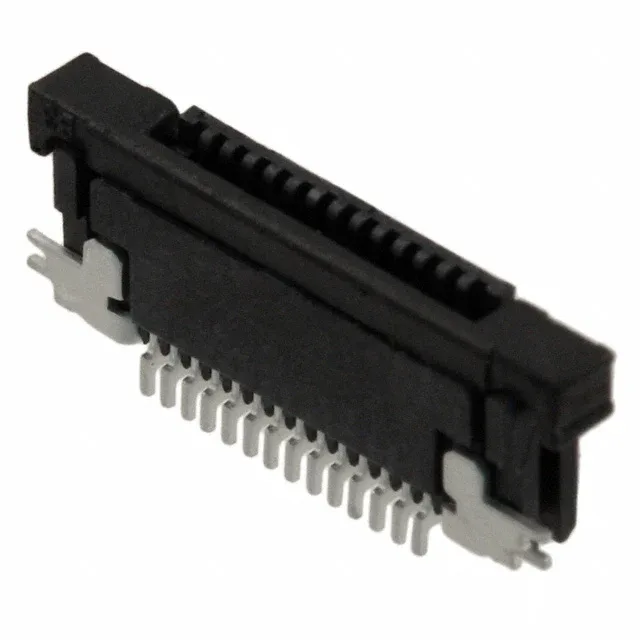

SFV14R-2STE1HLF — Amphenol product photo
Amphenol

SFV14R-2STE1HLF FFC/FPC Connector, 0.50mm Pitch, 14 Pos, ZIF

MPNSFV14R-2STE1HLF
Active

Amphenol ICC (FCI) SFV-R series, SFV14R-2STE1HLF, FFC/FPC connector, 14 positions, 0.020" (0.50mm) pitch, top-contact, ZIF slide lock, tin contacts, 0.5A, 50V, right-angle SMT, 1.80mm height, -55°C~105°C, UL94 V-0.

$0.5100Ref. price · indicative, final on quote
SFV14R-2STE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV14R-2STE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeNotched
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions14

Product details

14-Position ZIF FFC/FPC Connector for Tight Board Stacks

It uses a zero-insertion-force (ZIF) slide-lock actuator that accepts notched flat flex cables 0.30mm or 0.33mm thick. Rated 0.5A per contact at 50V, with tin-plated phosphor bronze contacts. The top-contact configuration means the FFC pads face upward when inserted; verify this orientation against your cable assembly and PCB layout.

RoHS compliant per current directive. Packaged in Tape & Reel (TR) for automated pick-and-place, with Cut Tape (CT) available for prototype or low-volume builds. The halogen-free LCP housing withstands lead-free reflow profiles.

Frequently asked questions

What FFC thickness does SFV14R-2STE1HLF accept?

It accepts FFC thicknesses of 0.30mm and 0.33mm. The cable end must be notched to match the connector keying. Using a different thickness can damage the ZIF actuator or cause poor contact.

Can SFV14R-2STE1HLF be used in high-vibration applications?

The slide-lock ZIF actuator provides moderate retention, but with only 20 rated mating cycles, it is not designed for repeated vibration or frequent disconnect. For high-vibration environments, consider a connector with a secondary lock or higher cycle life.
