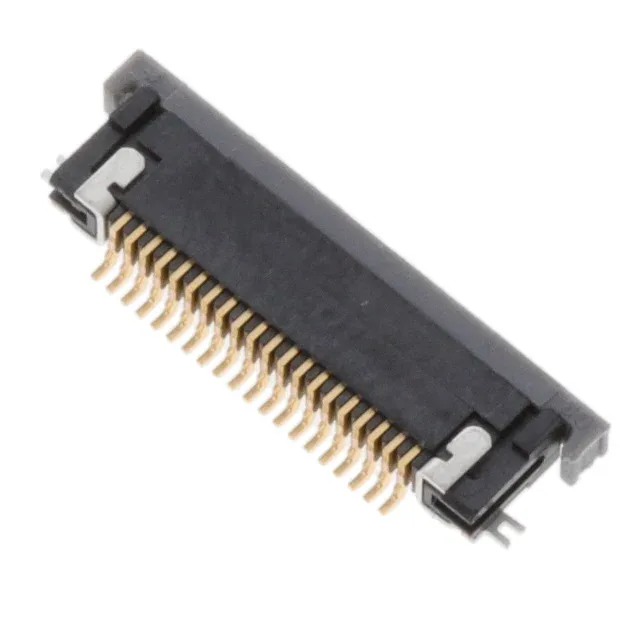

Amphenol ICC (FCI) SFV-R series, 20-position, 0.50mm pitch, bottom-contact FPC connector, ZIF slide-lock actuation, gold-plated phosphor bronze contacts, 0.5 A per contact, -55°C to 105°C, UL94 V-0 LCP housing, RoHS.
| Parameter | Value |
|---|---|
| Series | SFV-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Height above board | 0.071\" (1.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 20 |
The SFV20R-3STBE1HLF: Gold-plated phosphor bronze contacts with 20 mating cycles minimum — adequate for a single-assembly lifecycle in consumer or low-service equipment, but not for repeated field reconnects.
Zero Insertion Force (ZIF) with a slide lock — the actuator slides to clamp the FPC, eliminating insertion force on the flex circuit pads and reducing wear during assembly.
Critical for checking compatibility with cable pitch.
Required for regulatory compliance in many designs.
Ensures the connector can withstand the application environment.
Sourcing buyer needs immediate availability to avoid delays.
If obsolete or out of stock, need alternative.
Gold contact finish affects corrosion resistance and reliability.
