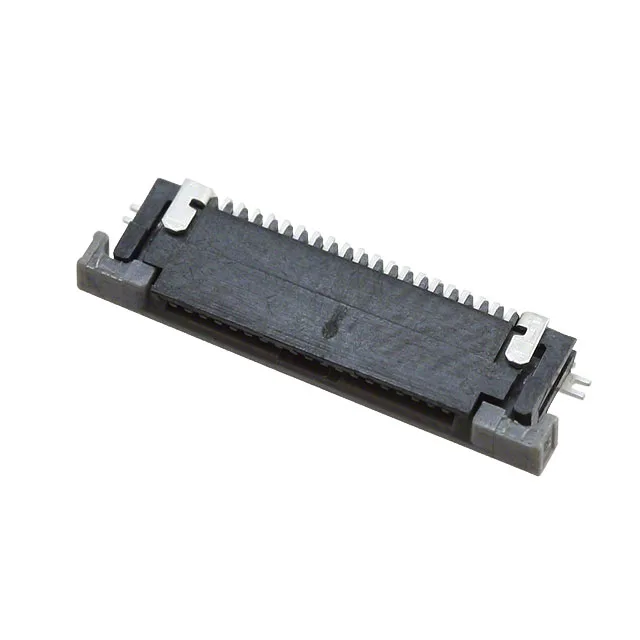

SFV20R-4STE1HLF FPC Connector – 0.50mm Pitch, 20 Pos, ZIF

MPN SFV20R-4STE1HLF
Active

Amphenol ICC (FCI) SFV-R series FPC connector, SFV20R-4STE1HLF, 20 positions, 0.50mm pitch, top contact, ZIF slide lock, right-angle SMT, tin finish, 0.5A, 50V, UL94 V-0.

$0.5700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesSFV-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

SFV20R-4STE1HLF key specifications
ParameterValue
SeriesSFV-R
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free

All specifications

SFV20R-4STE1HLF additional specifications
ParameterValue
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions20

Product details

0.50mm Pitch, 20-Position FPC Connector with ZIF Slide Lock

The SFV20R-4STE1HLF is a 20-position FPC connector from Amphenol ICC's SFV-R series, using a 0.50mm pitch and a right-angle surface-mount footprint. It accepts a 0.33mm-thick FPC and uses a ZIF slide-lock actuator — the slide pushes the contacts onto the flex pads without insertion force, then locks to hold the cable against vibration. Rated 0.5A per contact at 50V, with tin-plated phosphor bronze contacts. The tin finish keeps cost down but limits mating cycles to 20 — fine for a one-time assembly or infrequent rework, not for repeated field reconnections. The housing is black LCP, glass-filled and halogen-free, rated UL94 V-0.

RoHS compliant.

Position Count Comparison: 16, 20, and 24 Positions

The SFV-R series offers the same 0.50mm pitch and 1.80mm stack height across 16, 20, and 24 positions. The SFV16R-4STE1HLF carries 16 circuits; the SFV24R-4STE1HLF carries 24. For a board that already routes 20 traces, the SFV20R-4STE1HLF is the direct fit. Dropping to 16 positions saves board edge space; moving to 24 requires a wider flex and more PCB real estate.

Right-Angle SMT Mounting and Board Layout

This suits tight enclosures where a vertical connector would interfere with a cover or adjacent module. The slide-lock actuator sits on the top side, so the actuator clearance above the connector is minimal — no extra keep-out needed for a flip-lock hinge.
