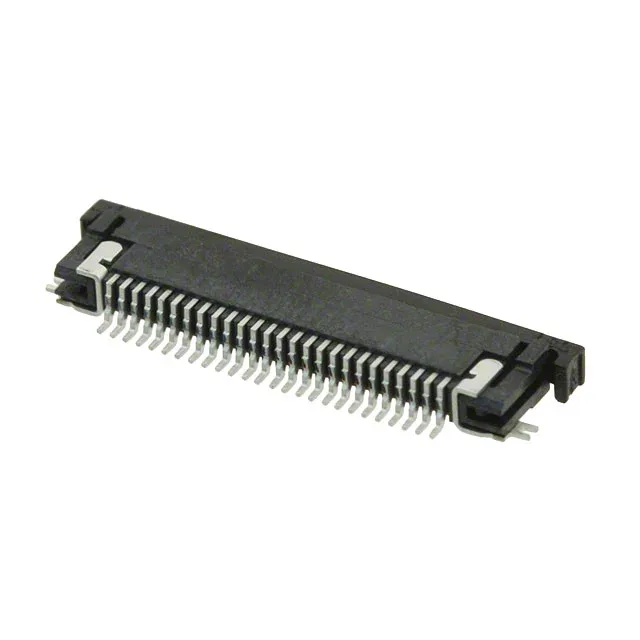

SFV26R-1STE1HLF FFC/FPC Connector 26 Pos 0.50mm ZIF SMT

MPNSFV26R-1STE1HLF
Active

Amphenol ICC (FCI) SFV-R series FFC/FPC connector, 26 positions, 0.50 mm pitch, ZIF slide lock, tin-plated phosphor bronze contacts, 0.5 A, 50 V, surface-mount right-angle, tape and reel.

$0.6800Ref. price · indicative, final on quote
SFV26R-1STE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV26R-1STE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions26

Product details

26-Position 0.50 mm ZIF for Signal-Density Routing

The SFV26R-1STE1HLF: The ZIF slide lock actuator accepts 0.30 mm or 0.33 mm thick FFC tails and secures them without insertion force, reducing wear on the flex circuit during assembly. The housing is black LCP, glass-filled and halogen-free, rated UL94 V-0 for flammability.

Tin vs Gold: Mating Cycle Trade-Off

The SFV26R-1STE1HLF uses tin-plated contacts, rated for 20 mating cycles.

It is RoHS compliant.

Cable Fit and Termination Checklist

The ZIF slide lock actuates after the cable is inserted, holding it without a secondary latch. Termination is solder — the SMT pads are on the bottom side of the connector, contacting the FPC traces from below.

Frequently asked questions

Is SFV26R-1STE1HLF a ZIF connector?

Yes, it features Zero Insertion Force (ZIF) with a slide lock actuator. The FPC or FFC is inserted without force, then the slide lock secures it.

What is the closest functional second-source to SFV26R-1STE1HLF?

The gold-plated sibling SFV26R-1STBE1HLF is pin-compatible — same pitch, positions, height, and ZIF mechanism — with gold contacts for higher mating cycle life.
