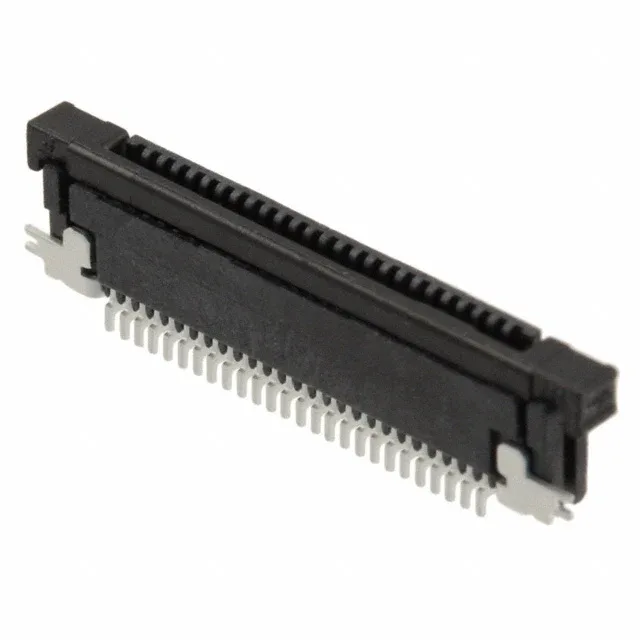

SFV26R-2STE1HLF — Amphenol product photo
Amphenol

SFV26R-2STE1HLF Amphenol FFC Connector 26-Pos 0.50mm

MPNSFV26R-2STE1HLF
Active

Amphenol ICC (FCI) SFV-R FFC connector, order code SFV26R-2STE1HLF, 26 positions, 0.50 mm pitch, 0.5 A, 50 V, tin-plated phosphor bronze contacts, surface-mount right-angle, solder termination, ZIF slide lock.

$0.6300Ref. price · indicative, final on quote
SFV26R-2STE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV26R-2STE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions26

Product details

0.50 mm pitch, 26-position ZIF FFC connector

The SFV26R-2STE1HLF is the 26-circuit member of Amphenol ICC (FCI)'s SFV-R series of FFC/FPC connectors, using a ZIF slide-lock actuator and top-side contact.

Position count selection across the SFV-R series

Within the SFV-R series the 26-position SFV26R-2STE1HLF sits between the 25-position SFV25R-2STE1HLF and the 28-position SFV28R-2STE1HLF — all share the 0.50 mm pitch, 1.80 mm height, and ZIF slide-lock feature, so the choice is driven by circuit count.

Frequently asked questions

Is SFV26R-2STE1HLF RoHS compliant?

Yes, SFV26R-2STE1HLF is RoHS compliant per the manufacturer listing.

What is the closest functional second-source for SFV26R-2STE1HLF?

The SFV-R series includes SFV28R-2STE1HLF (28 positions) and SFV25R-2STE1HLF (25 positions) with the same pitch, height, and contact finish.
