Amphenol SFV34R-3STBE1HLF

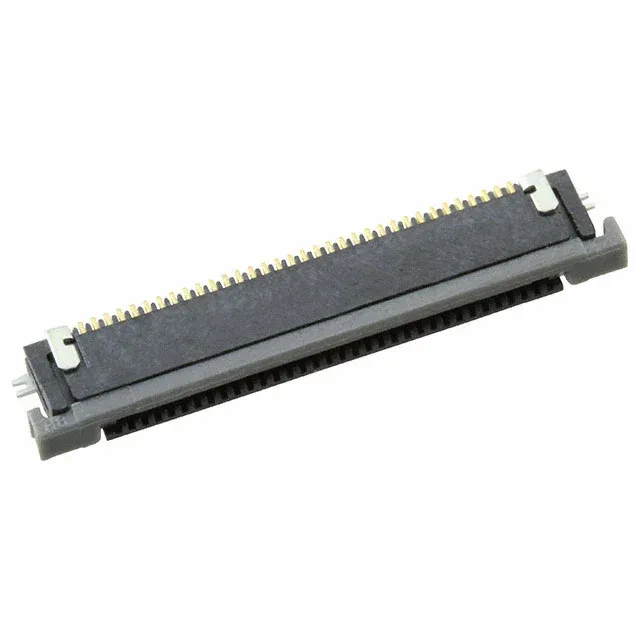

SFV34R-3STBE1HLF 34-Position 0.50mm FPC Connector, ZIF

MPN SFV34R-3STBE1HLF
Active

Amphenol ICC (FCI) SFV-R series, 34-position, 0.50mm pitch, bottom-contact FPC connector, ZIF actuation with slide lock, gold-plated contacts, 0.5 A per circuit, 50 V rating, surface-mount right-angle, halogen-free LCP housing, UL94 V-0.

$0.8700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesSFV-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

SFV34R-3STBE1HLF key specifications
ParameterValue
SeriesSFV-R
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free

All specifications

SFV34R-3STBE1HLF additional specifications
ParameterValue
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions34

Product details

The SFV34R-3STBE1HLF is a 34-position, 0.50 mm pitch FPC connector from the SFV-R series, with bottom-contact orientation and a ZIF slide-lock actuator. The bottom-contact design means the FPC cable's contact pads must face downward when inserted — a flipped flex shorts the wrong row. The 0.5 A limit is typical for signal-level FPC interconnects; the narrow pitch restricts current per circuit more than the contact itself.

Cable Thickness and Orientation Fit

This connector accepts FPC cables 0.33 mm thick — match the cable thickness to the actuator; a thinner cable risks intermittent contact, a thicker one may prevent the slide lock from closing fully. The slide lock provides tactile confirmation when the FPC is fully inserted and holds the cable against vibration.
