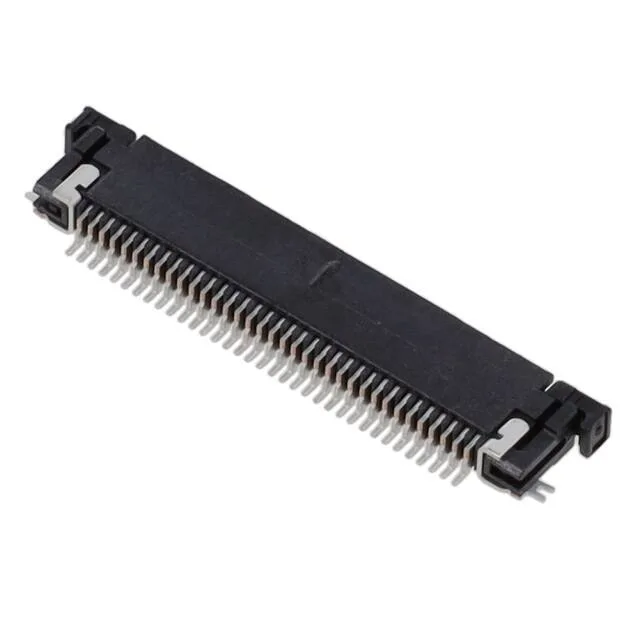

SFV35R-2STE1HLF — Amphenol product photo
Amphenol

SFV35R-2STE1HLF FFC/FPC Connector, 0.50mm Pitch, 35 Pos, ZIF

MPNSFV35R-2STE1HLF
Active

Amphenol ICC (FCI) SFV-R series, 35-position, 0.50 mm pitch, right-angle SMT FFC/FPC connector, top contact, ZIF slide lock, tin-plated contacts, 0.5 A, 50 V, UL94 V-0, RoHS compliant.

$0.3415Ref. price · indicative, final on quote
SFV35R-2STE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV35R-2STE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions35

Product details

0.50 mm Pitch, 35 Positions, ZIF Slide Lock

The housing is black LCP, glass-filled and halogen-free, rated UL94 V-0. The actuator is black PPS, also glass-filled and halogen-free.

The right-angle orientation places the FFC parallel to the board, with a mated height above board of 1.80 mm. This suits edge-mount applications where the flex exits along the board surface, saving z-height in thin enclosures.

Peer Comparison: SFV35R-2STE9HLF

The closest functional alternative is the SFV35R-2STE9HLF. It shares the same 35 positions, 0.50 mm pitch, 1.80 mm height, and ZIF slide lock. The difference: the -9 variant accepts both 0.30 mm and 0.33 mm FFC thickness, and the cable end type is listed as 'Straight, Tapered' — useful if your flex has a stiffener or a tapered insertion tip. If your cable is strictly 0.30 mm straight, the -2STE1HLF is the direct match.

Frequently asked questions

What is the pitch of SFV35R-2STE1HLF?

The pitch is 0.020" (0.50 mm). The connector has 35 positions.

Is SFV35R-2STE1HLF RoHS compliant?

Yes, RoHS compliant per the lifecycle record.

Can SFV35R-2STE1HLF be used with 0.3 mm FFC?

Yes, it accepts FFC or FPC with a thickness of 0.30 mm.

What is the closest alternative to SFV35R-2STE1HLF?

The SFV35R-2STE9HLF is the closest functional second-source. It shares the same 35 positions, 0.50 mm pitch, and ZIF slide lock, but also accepts 0.33 mm FFC and has a tapered cable end option.
