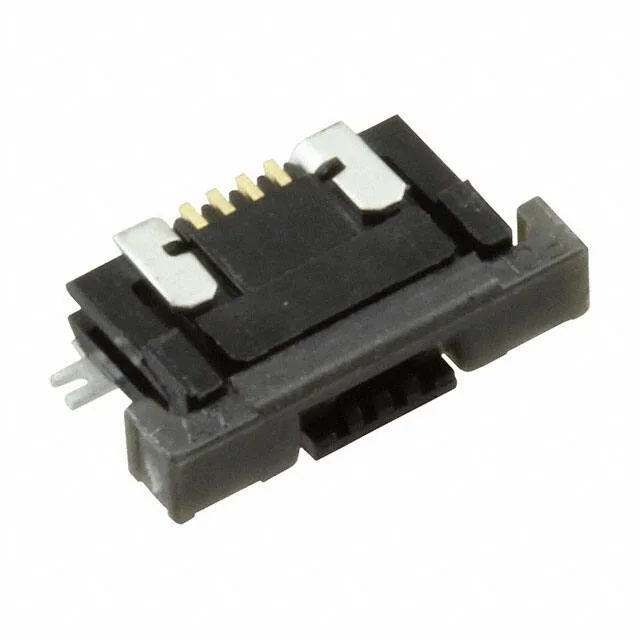

SFV4R-3STBE1HLF — Amphenol product photo
Amphenol

SFV4R-3STBE1HLF Amphenol ICC (FCI) FPC Connector

MPNSFV4R-3STBE1HLF
Active

Amphenol ICC (FCI) SFV-R series, SFV4R-3STBE1HLF — 4-position, 0.50 mm pitch, right-angle SMT FPC connector, bottom contact, ZIF slide-lock actuator, gold-plated phosphor bronze contacts, 0.5 A, 50 V, UL94 V-0 black housing, beige actuator.

$0.4200Ref. price · indicative, final on quote
SFV4R-3STBE1HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV4R-3STBE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBeige
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions4

Product details

What This 4-Position 0.50 mm Pitch FPC Connector Does

Mating Cycles and Field-Service Reality

Rated for 20 mating cycles. For applications requiring frequent cable swaps — say monthly calibration cycles — the 20-cycle rating means the connector should be budgeted as a limited-life component. The slide-lock actuator adds a tactile confirmation of full engagement, reducing the chance of partial mates that accelerate wear.

The base product number is SFV4R; the full order code SFV4R-3STBE1HLF is the specific configuration with beige actuator and tapered cable end type.

The closest peer in the SFV-R series is the SFV4R-1STBE1HLF — same 4 positions, same 0.50 mm pitch, same gold plating, same 0.5 A rating. The difference is the cable end type: the -1 variant accepts both straight and tapered FPC ends, while the -3 variant is tapered-only. If your FPC has a straight end, the -1 is the correct pick; for a tapered end, either works.

Frequently asked questions

Is SFV4R-3STBE1HLF compatible with standard 0.5mm FPC cables?

Yes, it accepts 0.30 mm-thick FPC with a tapered end. The 0.50 mm pitch is standard for this class of connector. The ZIF slide-lock actuator holds the cable without insertion force.

What is the closest functional second-source for SFV4R-3STBE1HLF?

Within the same series, the SFV4R-1STBE1HLF is the closest match — same 4 positions, same pitch, same ratings. The only difference is the cable end type: the -1 accepts straight and tapered FPC, while the -3 is tapered-only. For a tapered FPC, either part is a direct replacement.

Does SFV4R-3STBE1HLF support zero insertion force (ZIF)?

Yes, it features a ZIF slide-lock actuator. The contact beam wipes the FPC pad on insertion, and the slide lock provides positive retention without a secondary latch.
