5-Position, 0.50 mm Pitch ZIF — Board-Fit and Signal Duty

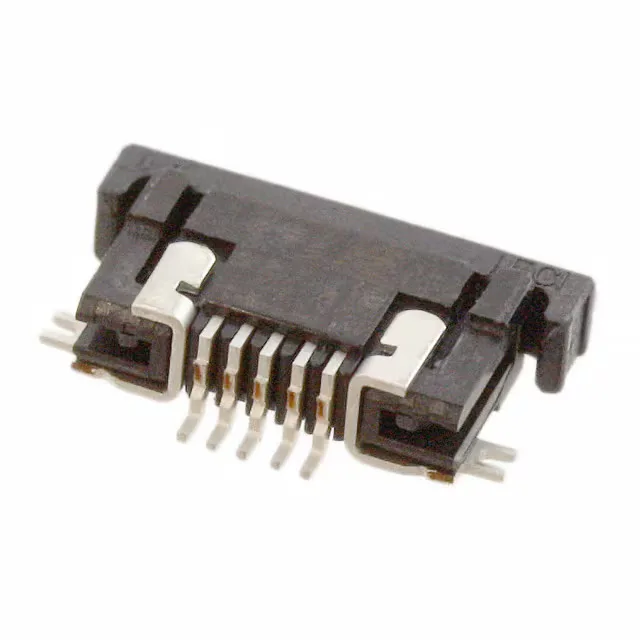

The SFV5R-1STE1HLF is a 5-position, 0.50 mm pitch ZIF FFC/FPC connector from Amphenol ICC (FCI)'s SFV-R series. It terminates to a 0.30 mm thick flat flex cable via bottom contacts, using a slide lock for positive retention after insertion. The right-angle SMT orientation keeps the mated height at 1.80 mm above the board — a low profile suited to tight z-height enclosures and board-edge routing. The 20 mating cycles reflect the tin plating grade — this is a signal-only interconnect for one-time assembly or low-service applications, not a field-reconnect power path.
Position-Count Alternative — SFV6R-1STE1HLF
The SFV5R-4STE1HLF offers 5 positions with top contacts instead of bottom, which changes the cable insertion orientation.
