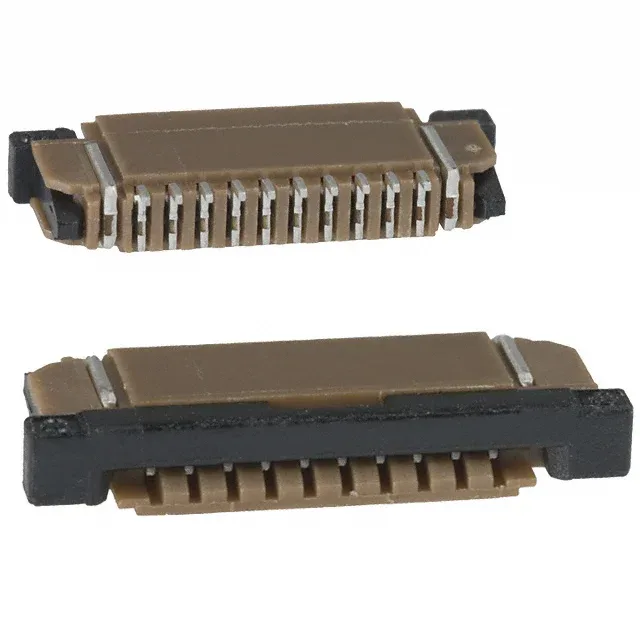

SFW10R-1STE1LF — Amphenol product photo
Amphenol

SFW10R-1STE1LF FFC/FPC Connector, 10 Pos, 1.00mm Pitch, ZIF

MPNSFW10R-1STE1LF
Active

Amphenol ICC (FCI) SFW-R series, SFW10R-1STE1LF – 10-position, 1.00 mm pitch, right-angle SMT FFC/FPC connector, ZIF slide-lock actuation, tin-plated phosphor bronze contacts, rated 1 A per contact at 100 V.

$0.9800Ref. price · indicative, final on quote
SFW10R-1STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW10R-1STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions10

Product details

ZIF Slide Lock and Cable Fit

The SFW10R-1STE1LF: Zero insertion force actuation with a slide lock: the actuator slides to clamp the FPC without bending the contacts, and the lock holds the cable under vibration. The bottom-contact design means the FPC pads face down toward the PCB; the tin-plated phosphor bronze contacts are rated for 20 mating cycles, which is typical for a single-install or low-service-life product.

Sourced to order against your BOM quantity; availability and current pricing confirmed at quote time.

Frequently asked questions

Is the SFW10R-1STE1LF obsolete or end-of-life?

It is in current manufacture.

What is the closest functional second-source to the SFW10R-1STE1LF?

The SFW10R-1STE9LF is the closest functional equivalent — same 10 positions, same 1.00 mm pitch, same ZIF slide lock and tin contacts. The only difference is the actuator color (black vs. brown).
