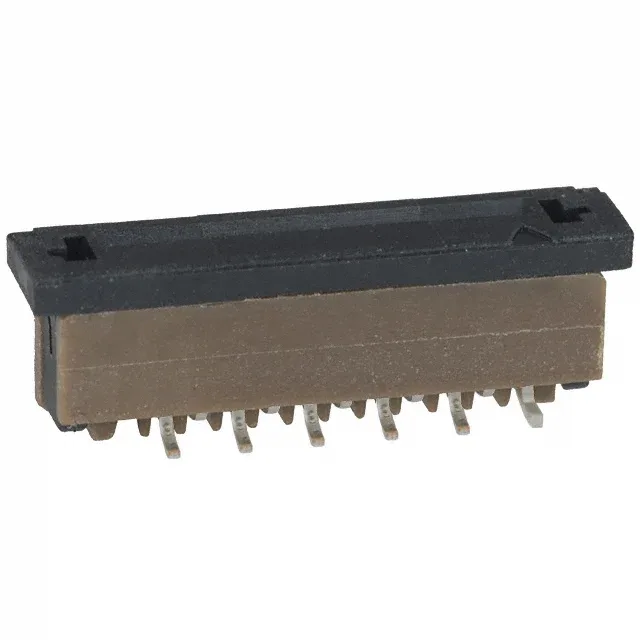

SFW10S-2STME1LF — Amphenol product photo
Amphenol

SFW10S-2STME1LF FFC/FPC Connector, 10 Position, 1.00mm Pitch

MPNSFW10S-2STME1LF
Active

Amphenol ICC (FCI) SFW series, SFW10S-2STME1LF — 10-position, 1.00 mm pitch, vertical SMD FFC/FPC connector, ZIF actuation, tin-plated phosphor bronze contacts, 1 A per circuit, 100 V, -55°C to 105°C, UL94 V-0 brown thermoplastic housing.

$0.6700Ref. price · indicative, final on quote
SFW10S-2STME1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW10S-2STME1LF Technical Specifications
ParameterValue
SeriesSFW
Mounting typeSurface Mount
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Contact materialPhosphor Bronze
Housing materialThermoplastic, Glass Filled
Actuator materialThermoplastic, Glass Filled
Height above board0.209\" (5.30mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
FFC, FCB thickness0.33mm
Positions10

Product details

1.00 mm Pitch, 10 Positions, ZIF Actuation

The Zero Insertion Force (ZIF) actuator means the flex cable slides into the housing with the actuator open, then the lever clamps the contacts — no insertion force on the cable pads, no scraping wear on the tin-plated contact beams.

Peer Comparison: Tin vs Gold, Brown vs Black

The SFW10S-2STME1LF is the tin-plated, brown-housing variant of the 10-position SFW series. The closest sibling is the SFW10S-2STE1LF — identical pitch, height, current, and tin finish, but available in a Digi-Reel® package option. If you need gold plating for higher mating cycle life, the SFW10S-2STAE1LF carries gold contacts. If the cable end is straight and tapered, the SFW10S-2STE9LF accepts 0.30 mm or 0.33 mm FFC thickness and adds a slide lock feature. All are active and RoHS compliant.

Frequently asked questions

What is the closest functional second-source for SFW10S-2STME1LF?

The SFW10S-2STE1LF is the closest match — same 10 positions, 1.00 mm pitch, vertical SMD, tin contacts, and brown housing. The only difference is the package option (Digi-Reel® available on the -2STE1LF). Both are active and RoHS compliant.

Does SFW10S-2STME1LF have a ZIF actuator?

Yes, it features a Zero Insertion Force (ZIF) actuator. The flex cable is inserted with the actuator open, then the lever is closed to clamp the contacts — no insertion force on the cable pads.
