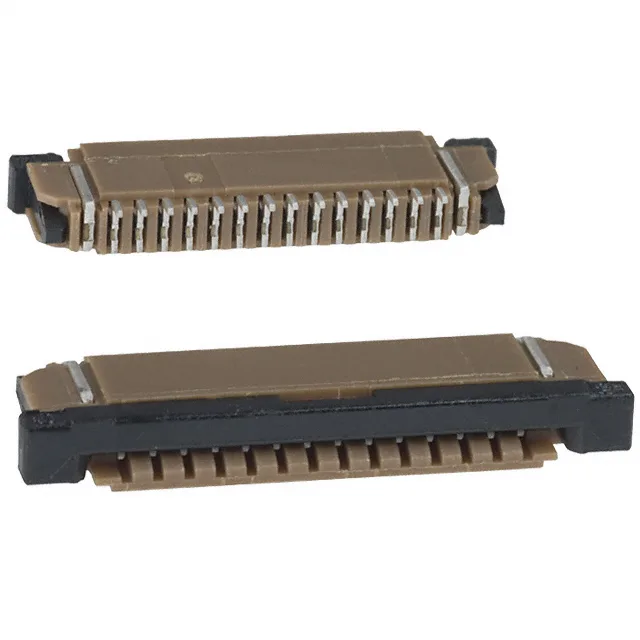

Board Fit and Routing — 1.00 mm Pitch, Right-Angle ZIF
The slide lock gives positive retention; a half-turn loose won't be an issue here because the lock stays put once engaged.
Current, Cycles, and Contact Finish — What the Ratings Mean
Tin on the mating face limits this connector to about 20 mating cycles before the contact resistance starts climbing; that's fine for a one-time harness assembly inside a sealed enclosure but not for a field-service cable that gets swapped quarterly.
Cable Compatibility — FFC Thickness and Termination
The bottom-contact arrangement means the cable's conductive pads face down toward the PCB — match the cable's conductor side accordingly. Termination is via kinked pins that self-locate during reflow, reducing tombstoning risk on the SMT line.
How This Compares to the Top-Contact Sibling
The closest functional alternative is the SFW14R-2STE1LF — same pitch, same 14 positions, same height, same current and voltage ratings. The difference is contact side: this -1STE1LF uses bottom contacts (cable pads face the PCB), while the -2STE1LF uses top contacts (cable pads face away). Choose based on your FPC conductor orientation and the routing of the signal traces on the board — swapping one for the other flips the cable lay.
