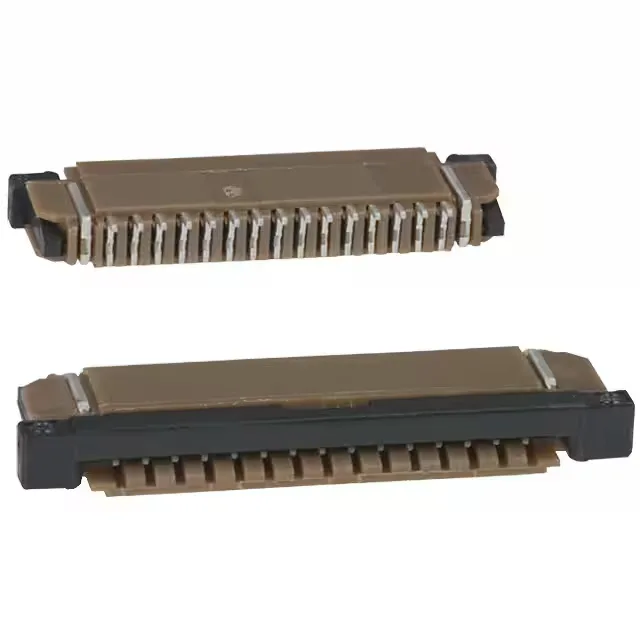

Amphenol ICC (FCI) SFW-R series, 15-position FFC/FPC connector, 1.00 mm pitch, right-angle SMT, ZIF actuation, tin-plated phosphor bronze contacts, rated 1 A at 100 V.
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Parameter | Value |
|---|---|
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 15 |
The SFW15R-1STE1LF is a 15-position FFC/FPC connector on 1.00 mm pitch, accepting 0.30 mm thick flat flex cable. The tin finish is suited for moderate reconnect duty — the 20 mating cycle rating means this connector fits applications where the cable is installed once or during service intervals, not daily reconnections.
RoHS compliant per.
The SFW15R-1STE1LF is available through independent distribution. Submit an RFQ for current lead time and package options (Tape & Reel or Cut Tape).
Yes, the connector features Zero Insertion Force (ZIF) actuation with a front-flip lock. The actuator closes over the FFC after insertion, holding the cable without requiring insertion force on the contacts.
