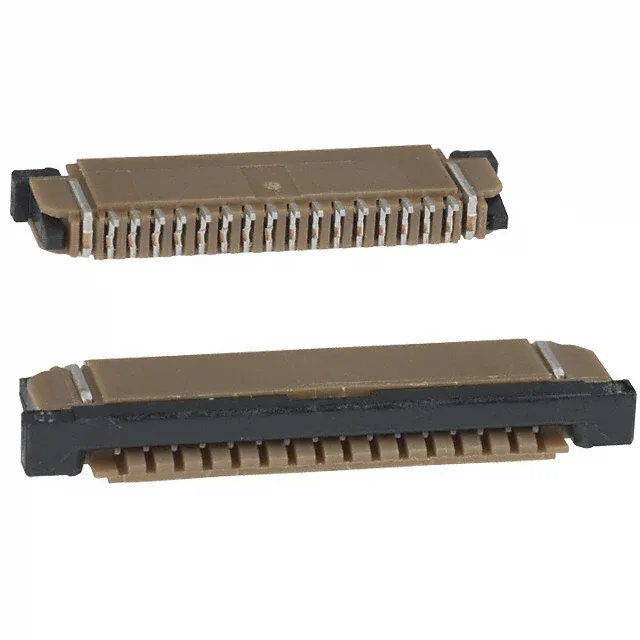

Amphenol ICC (FCI) SFW-R series, SFW16R-1STE1LF — 16-position, 1.00 mm pitch, bottom-contact ZIF FFC connector, SMT right-angle, tin-plated contacts, rated 1 A, 100 V, 20 mating cycles, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Parameter | Value |
|---|---|
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 16 |
The SFW16R-1STE1LF: It uses a Zero Insertion Force (ZIF) actuator with bottom contacts, accepting 0.30 mm thick FFC cable. The housing and actuator are glass-filled PPS (UL94 V-0), suitable for equipment requiring flame-rated materials.
Yes, it is RoHS compliant.
It accepts 0.30 mm thick FFC cable.
