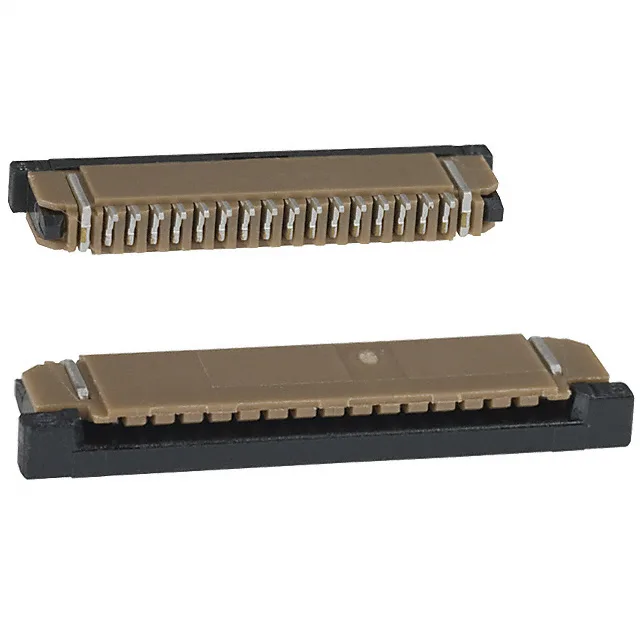

SFW16R-2STE1LF — Amphenol ICC FFC/FPC 16-Pos 1mm ZIF

MPNSFW16R-2STE1LF
Active

Amphenol ICC (FCI) SFW-R series, SFW16R-2STE1LF — 16-position, 1.00 mm pitch, top-contact ZIF FFC/FPC connector, tin-plated contacts, slide lock actuator, surface-mount right-angle, rated 1 A at 100 V.

$0.9400Ref. price · indicative, final on quote
SFW16R-2STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW16R-2STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions16

Product details

ZIF Actuator and Slide Lock — Cable Retention Without Force

No insertion force is applied to the cable, which avoids damaging the thin copper traces on the flex circuit.

The 0.106" (2.70 mm) height above board keeps the connector low-profile for tight enclosures.

1 A Current Rating — Signal-Level Duty

Comparing the SFW16R-2STE1LF with Its Siblings

The closest functional alternative is the SFW16R-2STE9LF — identical pitch, position count, height, and ZIF features, but with a black housing and black actuator instead of brown housing with black actuator. The electrical and mechanical specs are otherwise the same.

Frequently asked questions

Where can I buy SFW16R-2STE1LF and check current pricing?

The SFW16R-2STE1LF is an active Amphenol ICC (FCI) part, sourced to order.

Is SFW16R-2STE1LF RoHS compliant?

Yes, the manufacturer lists it as RoHS Compliant.

What is the difference between SFW16R-2STE1LF and SFW16R-2STE9LF?

The SFW16R-2STE9LF has a black housing and black actuator instead of the brown housing with black actuator on the -2STE1LF. All other specs — 1.00 mm pitch, 16 positions, ZIF slide lock, tin contacts, 1 A rating — are identical.

Does SFW16R-2STE1LF accept bottom-contact FPC?

No — this is a top-contact connector (Contacts, Top). For bottom-contact routing, use the SFW16R-3STE1LF, which is otherwise identical in pitch, position count, and ZIF features.
