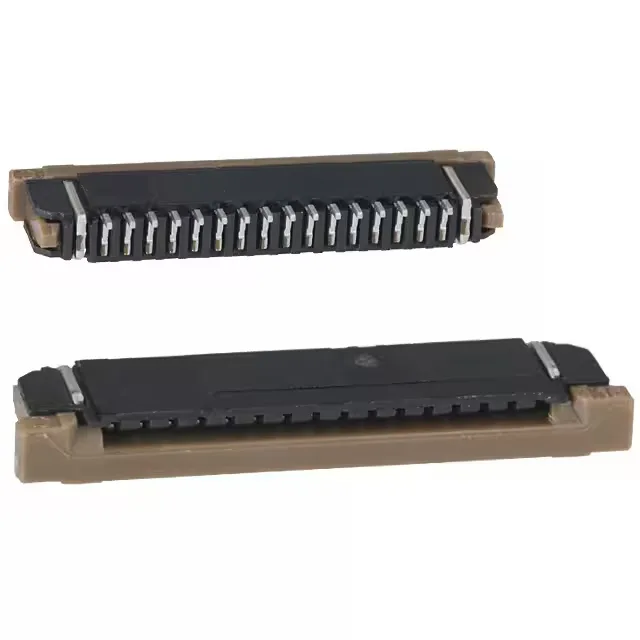

SFW16R-4STE1LF FFC/FPC Connector, 1.00mm Pitch, 16 Pos, ZIF

MPNSFW16R-4STE1LF
Active

Amphenol ICC (FCI) SFW-R series, 16-position right-angle SMT FFC/FPC connector, 1.00 mm pitch, ZIF with slide lock, tin-plated phosphor bronze contacts, 1 A rating, black housing with brown actuator.

$0.9700Ref. price · indicative, final on quote
SFW16R-4STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW16R-4STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeNotched, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions16

Product details

The SFW16R-4STE1LF: Right-angle SMT mounting with a 2.70 mm height above board suits low-profile enclosures and board-edge cable exits. The slide lock actuator provides positive cable retention without requiring insertion force on the flex pads — the ZIF mechanism wipes the contact beams onto the FFC conductors.

Active Lifecycle and Sourcing

Available in Tape & Reel and Cut Tape packaging for pick-and-place or prototype builds.

Peer Comparison — Position Count Variants

The SFW16R-4STE1LF shares the same 1.00 mm pitch, 2.70 mm height, tin-plated contacts, and ZIF slide lock with the 8-position SFW8R-4STE1LF and the 20-position SFW20R-4STE1LF.

Accepts FFC or FPC with notched, tapered cable ends in the 0.30 mm to 0.33 mm thickness range. The top-contact design requires the cable conductors to face upward when the connector is viewed from the top. The slide lock secures the cable after the ZIF actuator is closed — no secondary latch needed.

Frequently asked questions

What FFC cable thickness works with SFW16R-4STE1LF?

The connector accepts FFC or FPC with a thickness of 0.30 mm or 0.33 mm. The cable end must be notched and tapered for proper insertion into the ZIF mechanism.
