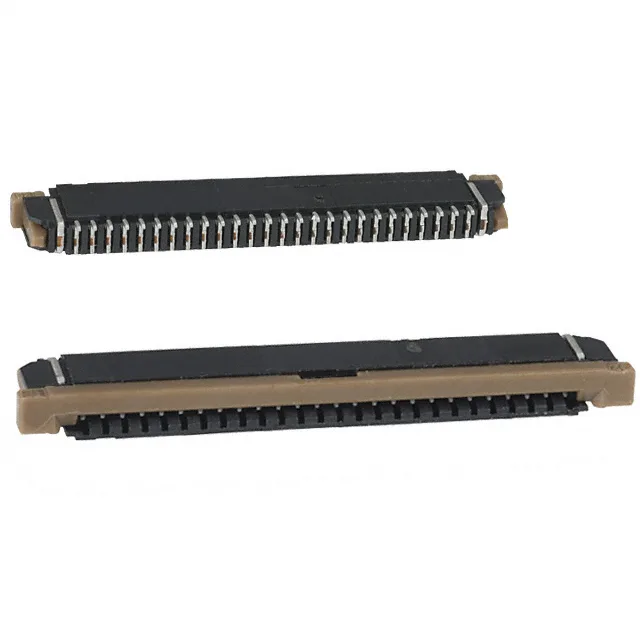

Amphenol ICC (FCI) SFW-R series, 26-position, 0.039" (1.00mm) pitch, right-angle SMT FFC/FPC connector, bottom contact, ZIF slide-lock, tin-plated phosphor bronze contacts, rated 1A at 100V, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 26 |
It uses a zero-insertion-force (ZIF) slide-lock actuator to clamp the FPC without stressing the pads — a key yield factor on high-density assembly lines.
Bottom-contact configuration means the FPC conductor pads face down toward the board. The slide lock retains the FPC after insertion; no secondary latch is needed.
No known successor or direct cross-reference from the original manufacturer.
Yes, it is RoHS compliant per the current directive.
Yes, the specified FFC/FPC thickness is 0.30 mm, which matches the contact beam design.
The two parts share the same position count, pitch, and electrical ratings, but the -3STE1LF has a black housing and accepts straight or tapered FPC ends, while the -1STE1LF has a brown housing and accepts straight ends only. Confirm the FPC end type and visual preference before substituting.
