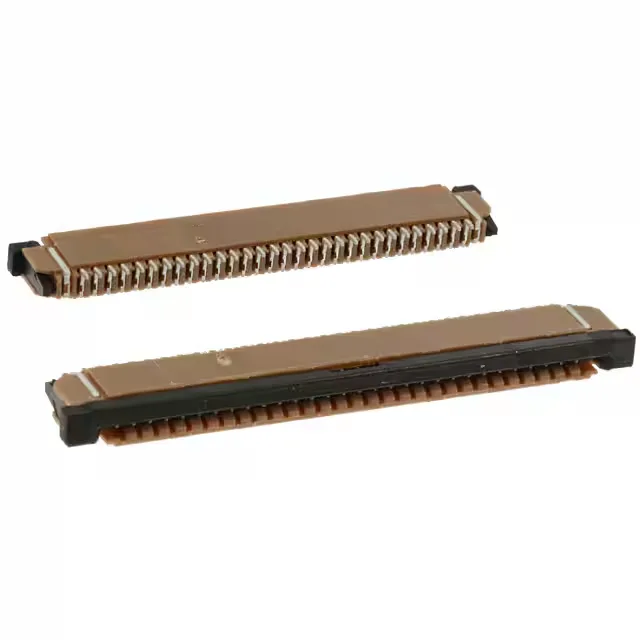

SFW30R-1STE1LF — Amphenol product photo
Amphenol

SFW30R-1STE1LF — Amphenol FFC Connector, 30 Pos, 1.00 mm

MPNSFW30R-1STE1LF
Active

Amphenol ICC (FCI) SFW-R series FFC/FPC connector, 30 positions, 0.039" (1.00 mm) pitch, ZIF actuation, right-angle SMT, tin-plated bottom contacts, rated 1 A per contact at 100 V, -55°C to 105°C.

$0.8100Ref. price · indicative, final on quote
SFW30R-1STE1LF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW30R-1STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
FFC, FCB thickness0.30mm
Positions30

Product details

The housing and actuator are glass-filled PPS rated UL94 V-0.

ZIF Actuator and 20 Mating Cycles — Deployment Reality

In an industrial sensor or display module where the cable is mated once during assembly and never touched again, the 20-cycle rating is adequate. For a field-service technician re-pinning a harness, this connector is not designed for repeated rework — plan for a full connector swap if the cable is cycled more than a few times.

Active Production, RoHS Compliant — Sourcing Posture

No official successor or pin-compatible alternative is recorded in the SFW-R series — the 30-position, 1.00 mm pitch ZIF footprint is specific to this order code.

Frequently asked questions

Where can I buy SFW30R-1STE1LF and what is the lead time?

SFW30R-1STE1LF is an active, RoHS-compliant part sourced through independent distribution. Lead time is confirmed at quote time.

What is the pitch and position count of SFW30R-1STE1LF?

The pitch is 0.039" (1.00 mm) and the connector has 30 positions. This is a ZIF bottom-contact design for 0.30 mm thick FFC or FPC.
