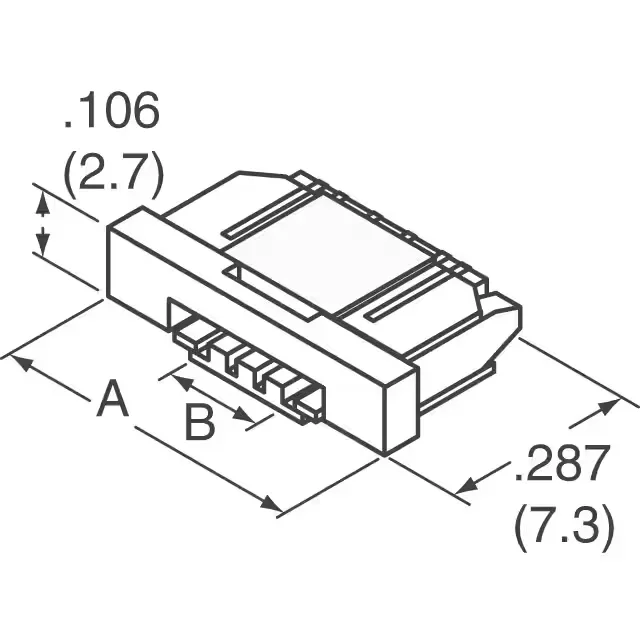

SFW4R-4STE1LF — Amphenol product photo
Amphenol

SFW4R-4STE1LF FFC/FPC Connector, 1.00mm Pitch, 4 Pos, ZIF

MPNSFW4R-4STE1LF
Active

Amphenol ICC (FCI) SFW-R series FFC/FPC connector, 4 positions, 1.00 mm pitch, right-angle SMT, ZIF slide-lock actuator, tin-plated contacts, rated 1 A at 100 V, UL94 V-0 housing.

$0.7400Ref. price · indicative, final on quote
SFW4R-4STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW4R-4STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeNotched, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions4

Product details

The SFW4R-4STE1LF: Four positions keep the connector small for low-signal-count interconnects — sensor inputs, LED drivers, or configuration headers where board space is at a premium.

Current and Contact Duty

In a production harness where the FPC is mated once and never touched, the cycle life is adequate; for field-service or repeated disconnect, a gold-plated version from the SFW-R series would be the better choice.

ZIF Actuator and Cable Retention

The notched, tapered cable end type ensures the FPC aligns correctly before the actuator is closed.

Frequently asked questions

What is the pitch of SFW4R-4STE1LF?

The pitch is 0.039" (1.00 mm). This is the centre-to-centre spacing between adjacent contacts, which determines the board footprint and the FPC pad layout.

How many positions does SFW4R-4STE1LF have?

It has 4 positions. This is a 4-circuit connector, suitable for low-signal-count interconnects.

Does SFW4R-4STE1LF support Zero Insertion Force (ZIF)?

Yes, it features a ZIF actuator with a slide lock. The FPC or FFC is inserted without force, then the actuator is closed to make contact.
