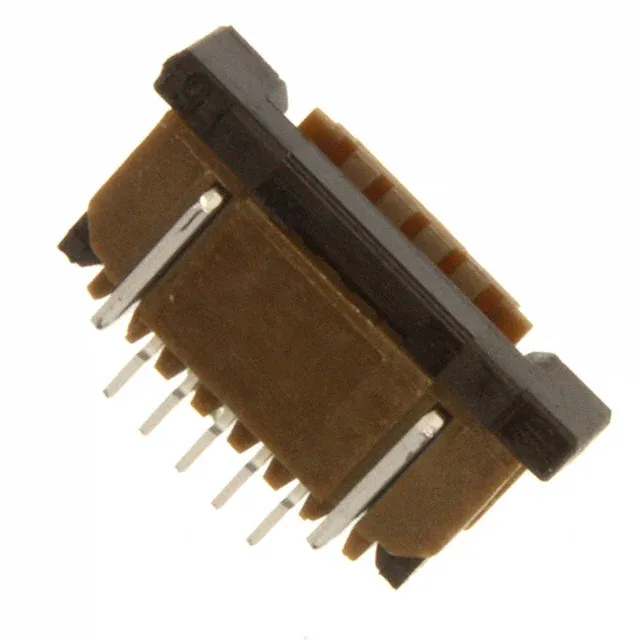

SFW5R-2STE1LF — Amphenol product photo
Amphenol

SFW5R-2STE1LF FFC/FPC Connector, 5 Pos, 1.00mm Pitch, ZIF

MPNSFW5R-2STE1LF
Active

Amphenol ICC (FCI) SFW-R series FFC/FPC connector, 5 positions, 0.039" (1.00mm) pitch, top contact, ZIF, right-angle SMT, tin plating, 1 A, 100 V, -55°C~105°C.

$0.7900Ref. price · indicative, final on quote
SFW5R-2STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW5R-2STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
FFC, FCB thickness0.30mm
Positions5

Product details

What This Connector Does in the Assembly

The SFW5R-2STE1LF is a 5-position FFC/FPC connector from the SFW-R series, designed for a single-row, 1.00 mm pitch interface. It mates with a 0.30 mm thick flat flex cable using a top-contact, zero insertion force (ZIF) actuator — the actuator lifts the contact beams clear of the FPC pads during insertion, then clamps them down for a gas-tight connection.

Five positions suit low-circuit-count signal or power lines. The mated height above board is 0.106" (2.70 mm), which fits standard board-to-cover clearances.

Rated for 20 mating cycles — the tin contact finish limits cycle life compared to gold-plated alternatives. For higher reconnect duty, consider a gold-plated sibling in the SFW-R series.
