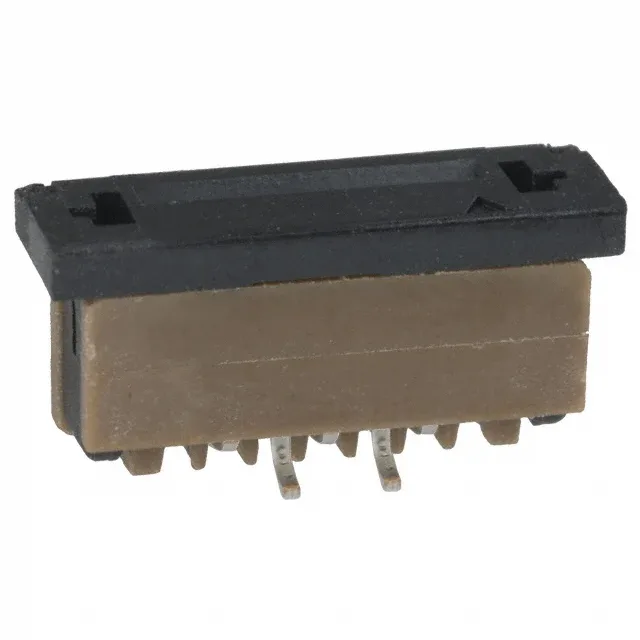

SFW5S-2STE1LF — Amphenol product photo
Amphenol

SFW5S-2STE1LF Amphenol ICC (FCI) FFC/FPC Connector, 5 Pos

MPNSFW5S-2STE1LF
Active

Amphenol ICC (FCI) SFW series, 5-position FFC/FPC connector, 1.00 mm pitch, vertical SMT, Zero Insertion Force (ZIF) actuation, tin-plated phosphor bronze contacts, UL94 V-0 brown thermoplastic housing.

$0.5600Ref. price · indicative, final on quote
SFW5S-2STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW5S-2STE1LF Technical Specifications
ParameterValue
SeriesSFW
Mounting typeSurface Mount
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Contact materialPhosphor Bronze
Housing materialThermoplastic, Glass Filled
Actuator materialThermoplastic, Glass Filled
Height above board0.209\" (5.30mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
FFC, FCB thickness0.33mm
Positions5

Product details

Board Layout Fit: 1.00 mm Pitch, 5 Positions, Vertical SMT

The SFW5S-2STE1LF: It mounts vertically on the PCB via surface-mount solder tails, with a height above board of 0.209" (5.30 mm). The ZIF actuator accepts 0.33 mm thick FFC or FPC cable — the contact style is vertical, one-sided, meaning the cable's conductive pads face the same side as the actuator. The tin-plated phosphor bronze contacts are rated for 20 mating cycles — adequate for cable assemblies that are connected during manufacture and rarely re-mated in the field.

Sourcing and Lifecycle: Active Production, RFQ-Based Availability

The part is RoHS compliant.

Frequently asked questions

Is SFW5S-2STE1LF compatible with standard 1.00 mm pitch FFC cables?

Yes — the 1.00 mm pitch and 0.33 mm FFC/FPC thickness specification are standard. The ZIF actuator accepts the cable without insertion force; the vertical, one-sided contact style means the cable's conductive pads must face the actuator side.

Where can I buy SFW5S-2STE1LF and check stock?

Sourced to order against your BOM quantity through independent distribution.
