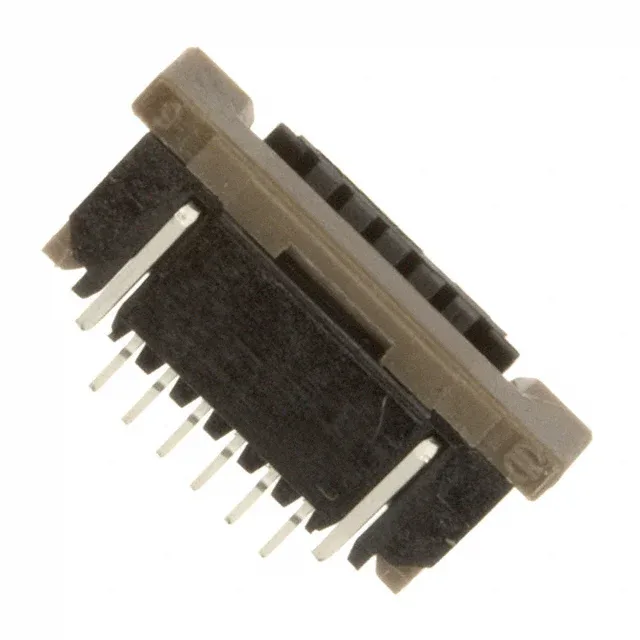

SFW6R-4STE1LF — Amphenol product photo
Amphenol

SFW6R-4STE1LF Amphenol FCI 6-Pos 1.00mm FPC Connector, ZIF

MPNSFW6R-4STE1LF
Active

Amphenol ICC (FCI) SFW-R series, SFW6R-4STE1LF — 6-position, 1.00mm pitch, top-contact FPC connector, ZIF slide-lock, surface-mount right-angle, tin-plated phosphor bronze contacts, rated 1 A, 100 V.

$0.7800Ref. price · indicative, final on quote
SFW6R-4STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW6R-4STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeNotched, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions6

Product details

The SFW6R-4STE1LF is a 6-position, 1.00mm pitch FPC connector from the SFW-R series, with a right-angle SMT orientation that routes the flex parallel to the board surface. The ZIF slide-lock mechanism accepts the FPC without insertion force and holds it with a positive latch.

Contact and Current Duty

The tin finish is cost-effective for low-cycle applications — the connector is specified for 20 mating cycles, which suits one-time assembly or infrequent field reconnections. The top-contact design mates with notched, tapered FPC cables 0.30mm or 0.33mm thick.

The SFW-R series includes 4-position (SFW4R-4STE1LF) and 8-position (SFW8R-4STE1LF) variants with identical pitch, height, current rating, and contact finish.

Frequently asked questions

What FPC thickness does SFW6R-4STE1LF accept?

It accepts FPC cables 0.30mm or 0.33mm thick, with a notched, tapered cable end type.
