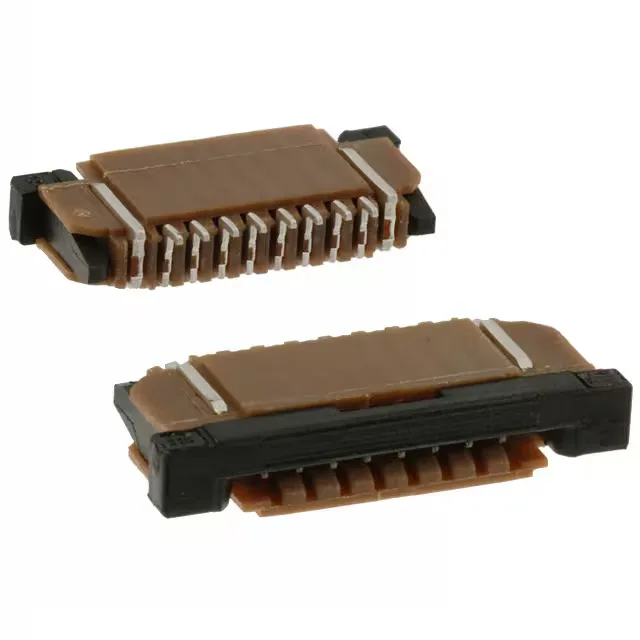

SFW8R-1STE1LF — Amphenol product photo
Amphenol

SFW8R-1STE1LF FFC/FPC Connector, 8 Pos, 1.00mm Pitch, ZIF

MPNSFW8R-1STE1LF
Active

Amphenol ICC (FCI) SFW-R series, 8-position, 0.039" (1.00mm) pitch, right-angle SMT FFC/FPC connector with ZIF actuation, tin-plated contacts, rated 1 A per contact at 100 V, operating temperature -55°C to 105°C.

$0.7800Ref. price · indicative, final on quote
SFW8R-1STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW8R-1STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
FFC, FCB thickness0.30mm
Positions8

Product details

8-Position, 1.00mm Pitch ZIF FFC/FPC Connector

The SFW8R-1STE1LF: It uses a Zero Insertion Force (ZIF) actuation mechanism, meaning the FFC slides in without force and is clamped by the actuator, reducing pad wear and enabling field rework. The tin-plated phosphor bronze contacts are rated for 20 mating cycles, which is typical for single-mate or infrequent-service applications. The connector accepts 0.30mm thick FFC or FPC with straight or tapered ends, and the contacts are on the bottom side of the connector.

It is RoHS compliant.

Frequently asked questions

What is the closest functional equivalent to SFW8R-1STE1LF?

The SFW8R-1STAE1LF is a direct sibling with gold-plated contacts instead of tin, offering higher mating cycle life. The SFW8R-2STE1LF is identical except for top-side contacts. Both share the same 1.00mm pitch, 8 positions, and right-angle SMT footprint.

Where can I buy SFW8R-1STE1LF?

Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
