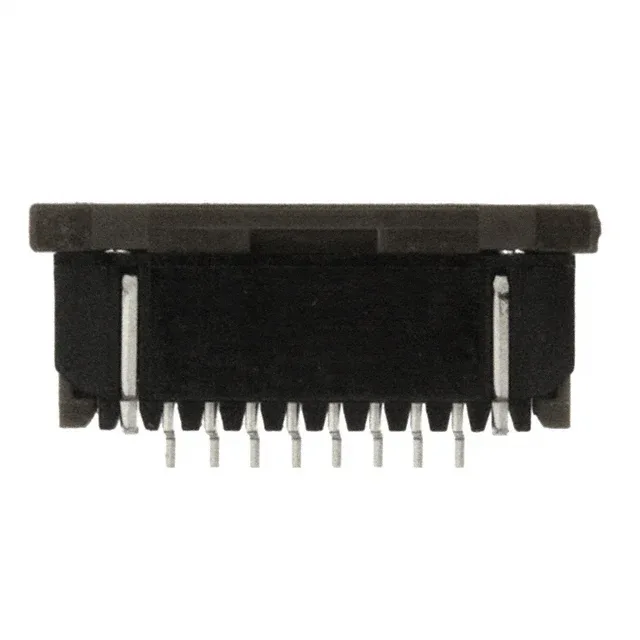

1.00 mm Pitch, 8-Position ZIF — the Footprint and Circuit Count
The SFW8R-3STE1LF: Eight positions cover a typical signal group (e.g., SPI bus plus power and ground), but if your harness needs more or fewer circuits, the SFW-R series offers 4, 5, and 10-position siblings with the same pitch and height.
1 A per Contact, 20 Mating Cycles — the Power and Reconnect Budget
The 1 A rating is typical for signal-level FFC interconnects; derate for ambient temperature above 85°C and for multiple adjacent contacts carrying full current simultaneously.
Accepts 0.30 mm and 0.33 mm FPC — Cable Thickness Compatibility
The ZIF mechanism means you insert the cable with zero insertion force, then slide the lock to clamp the contacts — no prying or force on the FPC during assembly.
Right-Angle SMT, 2.70 mm Height — Board-Layout Fit
The slide lock adds vibration resistance compared to a friction-only ZIF, but in high-shock environments a secondary retention method (e.g., adhesive or a clamp) may be needed.
