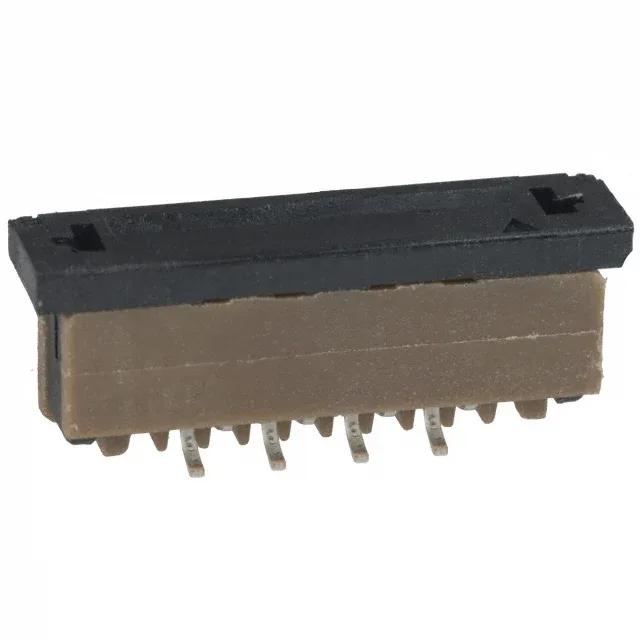

The SFW8S-2STE1LF: Zero Insertion Force (ZIF) mechanism: the actuator lifts the contact beams clear of the cable pad during insertion, then clamps down to make contact. This eliminates pad scoring and extends the usable life of the FFC beyond the connector's own 20 mating cycles. For signal-level loads (sensors, displays, logic), this is ample headroom.
Comparing the SFW8S-2STE1LF with Its Siblings
For a gold-plated alternative, SFW8S-2STAE1LF swaps tin for gold on the contact interface, raising the mating cycle ceiling beyond 20 cycles. The gold version also specifies a 0.33 mm FPC thickness vs the 0.30 mm FFC/FPC thickness accepted here.
Kinked pin termination on the SMT feet provides mechanical retention during reflow — the kink increases the solder joint's resistance to shear forces from cable strain.
