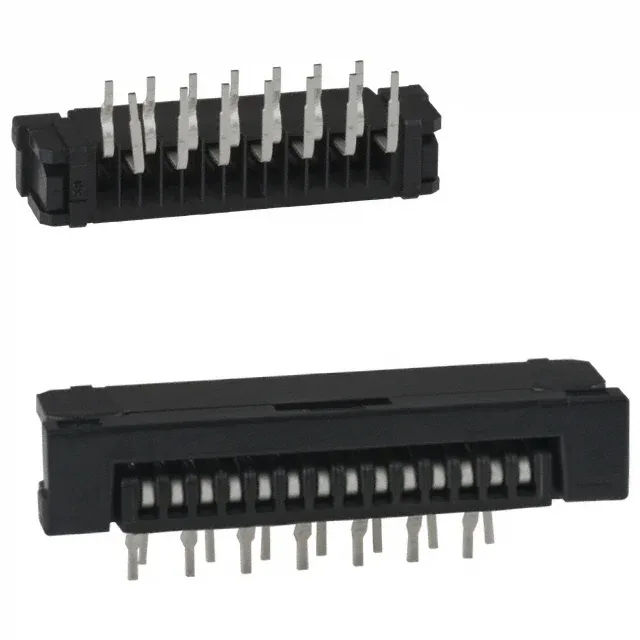

SLW14R-1C7LF — Amphenol product photo
Amphenol

SLW14R-1C7LF Amphenol ICC FCI FFC Connector 14 Pos 1.00mm

MPNSLW14R-1C7LF
Active

Amphenol ICC (FCI) SLW-R series FFC/FPC connector, 14 positions, 0.039" (1.00mm) pitch, through-hole right-angle, ZIF flip-lock actuator, tin-plated phosphor bronze contacts, bottom-contact configuration, rated 1 A at 100 V, operating -55°C to 85°C.

$0.4400Ref. price · indicative, final on quote
SLW14R-1C7LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SLW14R-1C7LF Technical Specifications
ParameterValue
SeriesSLW-R
Mounting typeThrough Hole, Right Angle
Cable end typeNotched or Tabbed
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.157\" (4.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions14

Product details

14-Pin ZIF FFC Connector for 1.00mm Pitch Ribbon

The SLW14R-1C7LF is a 14-position FFC/FPC connector from Amphenol ICC (FCI)'s SLW-R series, built for 1.00 mm pitch ribbon cable with a 0.30 mm thickness. The ZIF flip-lock actuator secures the cable without insertion force, and the through-hole right-angle mounting keeps the connector profile at 4.00 mm above the board.

Board Fit and Cable Orientation

Bottom-contact configuration means the FPC's conductive pads face down toward the PCB when inserted.

Frequently asked questions

Does SLW14R-1C7LF support 0.30 mm thick FFC cables?

Yes. The connector accepts FFC or FPC with a thickness of 0.30 mm. Using a different thickness will not seat the contact beam correctly.

What is the mating cycle rating for SLW14R-1C7LF?

20 mating cycles minimum. This is a one-time-assembly connector for consumer devices; not intended for repeated field-service reconnects.

Where can I buy SLW14R-1C7LF?

Availability and current pricing confirmed at quote time.
