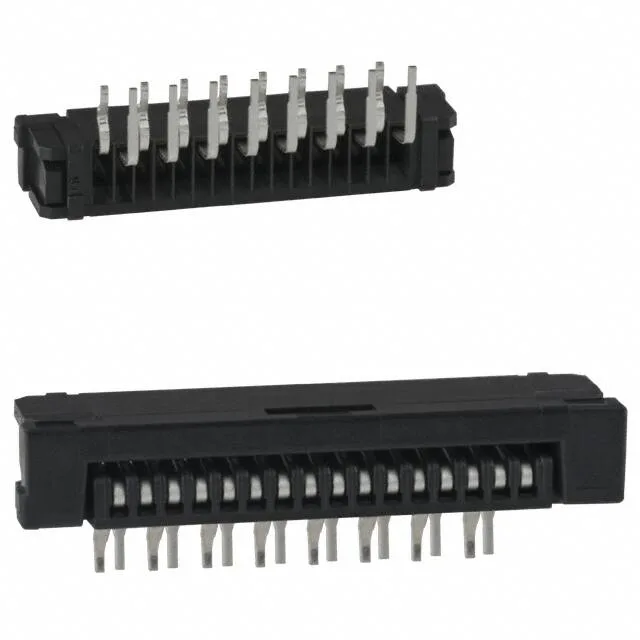

SLW16R-1C7LF — Amphenol product photo
Amphenol

SLW16R-1C7LF Amphenol ICC FCI FFC/FPC Connector 16 Pos

MPNSLW16R-1C7LF
Active

Amphenol ICC (FCI) SLW-R series, SLW16R-1C7LF — 16-position FFC/FPC connector, 0.039" (1.00mm) pitch, through-hole right-angle, ZIF slide-lock, tin-plated contacts, 1 A, 100 V, UL94 V-0.

$0.5300Ref. price · indicative, final on quote
SLW16R-1C7LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SLW16R-1C7LF Technical Specifications
ParameterValue
SeriesSLW-R
Mounting typeThrough Hole, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.157\" (4.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTray
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions16

Product details

The SLW16R-1C7LF: Zero Insertion Force (ZIF) means the FPC slides into the open actuator without bending or stressing the contacts — the slide lock then clamps the cable in place. This avoids the insertion-force damage that non-ZIF connectors cause on thin flex circuits.

Sizing the Contact Interface for Signal Duty

The 20 mating cycles reflect the tin finish: adequate for one-time assembly or occasional rework, not for daily reconnection.

The SLW18R-1C7LF is the 18-position version of the same SLW-R series — identical pitch, height, current, voltage, ZIF actuation, and tin plating. If your FPC has 18 conductors, the SLW18R-1C7LF is a drop-in replacement on the same footprint.

Frequently asked questions

Is SLW16R-1C7LF a ZIF connector?

Yes — it features Zero Insertion Force (ZIF) actuation with a slide lock, so the FPC slides in without force and the lock clamps it in place.

What is the pitch of SLW16R-1C7LF?

The pitch is 0.039" (1.00 mm), which sets the PCB pad spacing and the FPC conductor pitch.

Where can I buy SLW16R-1C7LF?

Availability and current pricing confirmed at quote time.
