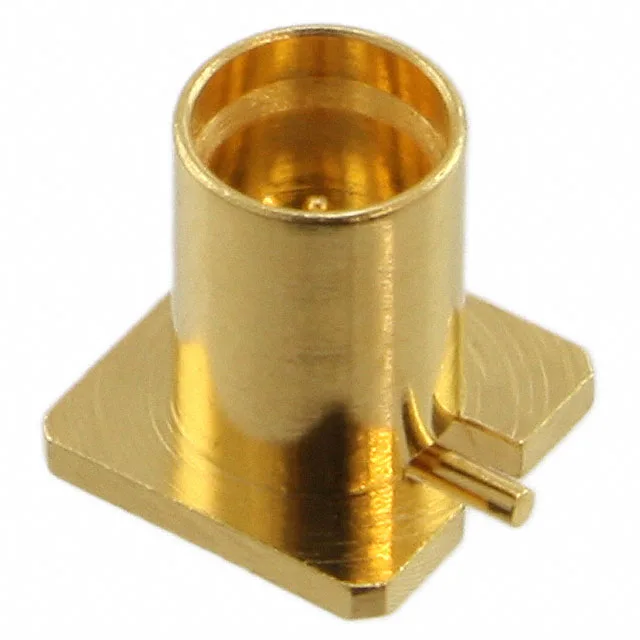

SMP Jack, Male Pin — 50 Ohm, Full Detent, SMT
Termination and Mounting — SMT for Automated Assembly
Surface-mount termination with solder shield termination — the outer shell and centre contact both solder to the PCB. The SMT footprint suits high-density RF boards where through-hole vias would consume routing space. The single-port, 1-port configuration is a straightforward RF launch; the shield termination is soldered to the ground plane, and the centre pin lands on the RF trace. The PEEK dielectric holds its dielectric constant across the temperature range, keeping the 50 Ohm impedance stable through the launch.
