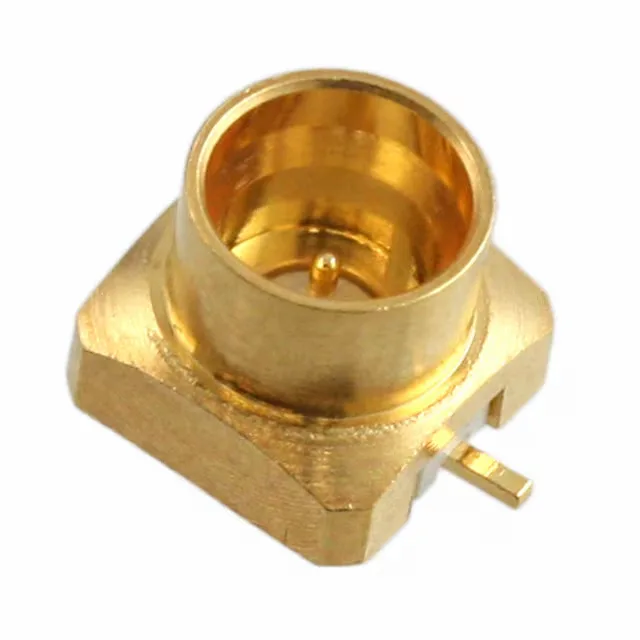

SMP-MSLD-PCS SMP Receptacle, Male Pin, 50 Ohm, 18 GHz, SMT

MPNSMP-MSLD-PCS
NRND

Samtec SMP-MSLD-PCS SMP receptacle, male pin, 50 Ohm impedance, DC to 18 GHz, 1 port, surface mount, gold-plated brass body, Limited Detent, 500 mating cycles, Bulk.

$14.3500Ref. price · indicative, final on quote
SMP-MSLD-PCS datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SMP-MSLD-PCS Technical Specifications
ParameterValue
Mounting typeSurface Mount
Connector typeReceptacle, Male Pin
Fastening typeSnap-On
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialBrass
PackageBulk
FeaturesLimited Detent
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMP-MSLD-PCS: 50 Ohm SMP Receptacle, DC–18 GHz, Limited Detent

It is a single-port, surface-mount connector with a gold-plated brass body and a Liquid Crystal Polymer (LCP) dielectric. Rated for 500 mating cycles, it handles field-service or test-point duty without wearing out the interface.

That means the manufacturer has flagged it for phase-out — it is still available for existing BOM lines, but new projects should select the current-production SMP-MSLD series member.

SMT Termination and Board Layout

Surface-mount termination means the SMP-MSLD-PCS reflows alongside other SMT components — no through-hole vias under the RF launch, which simplifies the PCB stack-up for controlled-impedance traces. The shield termination is solder, so the ground plane connects directly through the footprint pads.

Frequently asked questions

Is SMP-MSLD-PCS compatible with standard SMP connectors?

Yes. SMP-MSLD-PCS uses the standard SMP snap-on interface per the SMP interface standard. It mates with any SMP plug or jack that follows the same interface geometry, regardless of detent type. The Limited Detent only affects the axial retention force, not the mechanical fit or RF performance.

What is the replacement for SMP-MSLD-PCS?

For new designs, select the current-production member of the SMP-MSLD series. The NRND status means the manufacturer intends to phase this variant out — confirm the exact replacement with Samtec or your distributor before committing a new BOM line.

Where can I buy SMP-MSLD-PCS?

SMP-MSLD-PCS is sourced to order. Contact a distributor for current pricing and lead time.
