Amphenol TJ0371500000G
MPNTJ0371500000G
Active

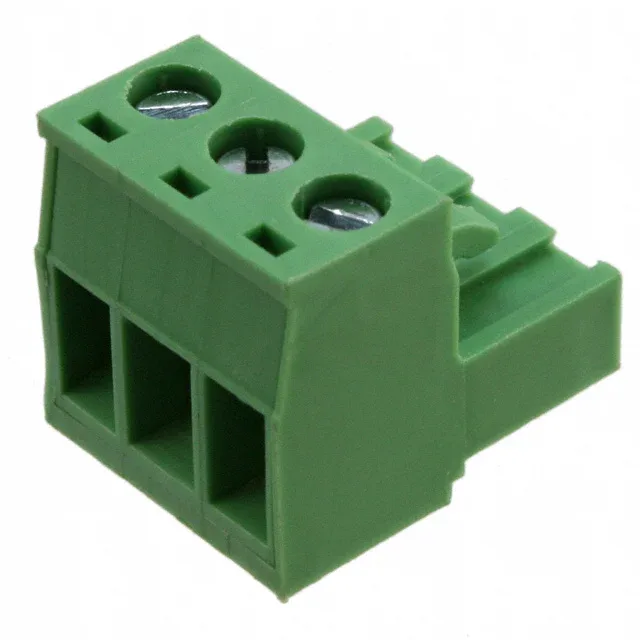

TERM BLOCK PLUG 3POS STR 5MM
$1.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series01-500
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-500 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 1-2.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 0.594\" (15.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
