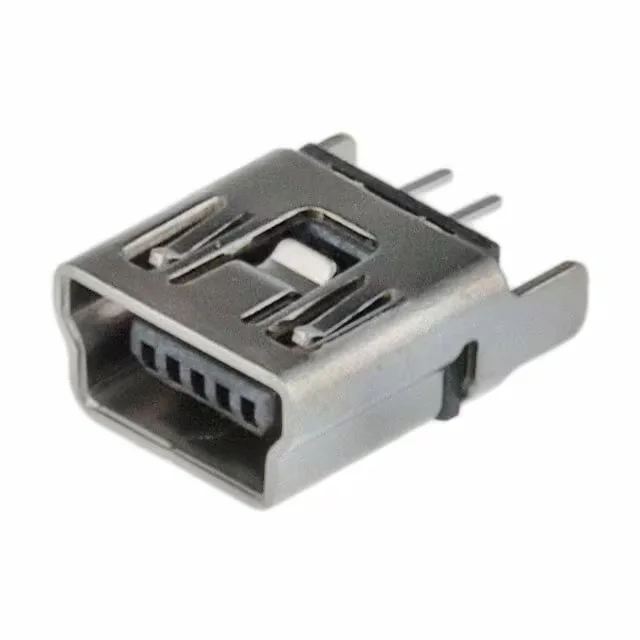

Amphenol ICC UE25 series USB - mini B receptacle, order code UE25BE5510H, 5 contacts, single port, vertical through-hole, solder termination, gold-plated contacts, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | UE25 |
| Mounting type | Through Hole |
| Connector type | USB - mini B |
| Positions | 5 |
| Mounting feature | Vertical |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Number of ports | 1 |
The UE25BE5510H is a 5-contact USB mini B receptacle from Amphenol ICC's UE25 series, mounted vertical through-hole for a right-angle cable exit relative to the PCB. Gold-plated contacts mate with the standard mini-B plug; the housing carries a board guide for alignment during assembly and meets UL94 V-0 flammability.
