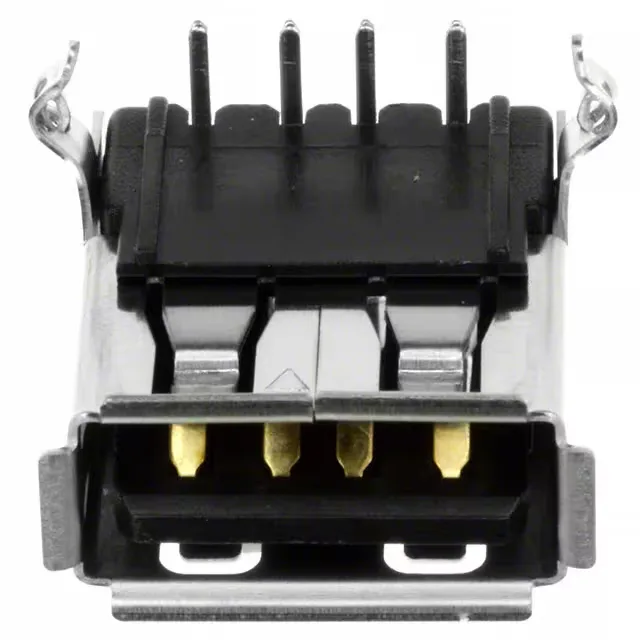

Amphenol ICC UE27 series USB-A (USB TYPE-A) receptacle, order code UE27AC54100, 4 contacts, 1 A per contact, 30 VAC, gold-plated contacts, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | UE27 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The UE27AC54100 is the 4-contact USB 2.0 Type-A receptacle in Amphenol ICC's UE27 series, mounted through-hole right-angle with a horizontal orientation. Gold-plated contacts and a rated 1500 mating cycles suit this part for equipment that sees repeated cable insertions over its service life, such as front-panel or test jig ports.
