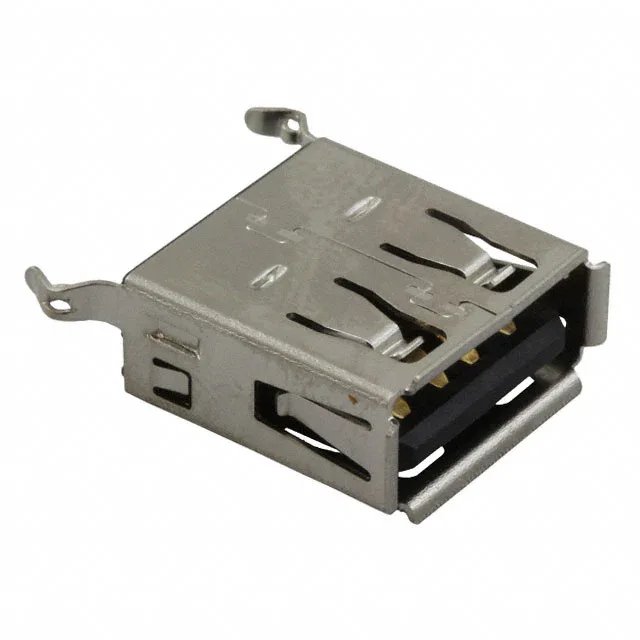

Amphenol ICC (Commercial Products) UE27 series USB-A (USB TYPE-A) receptacle, order code UE27AE54100, 4 contacts, single port, vertical through-hole, solder termination, gold-plated contacts, shielded, board lock.
| Parameter | Value |
|---|---|
| Series | UE27 |
| Mounting | Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Vertical |
| Operating temperature | -40°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The UE27AE54100 is a 4-contact USB-A receptacle in Amphenol ICC's UE27 series, specified for USB 2.0 signal rates.
Rated for 1500 mating cycles — the gold contact finish supports repeated connect-disconnect duty in field-service or test equipment roles. The board lock feature aids through-hole solder retention during wave-solder and handling.
Solder termination, through-hole mounting, vertical orientation. The shell includes a board lock for retention during assembly.
Receptacle, 4 contacts (USB Type-A, USB 2.0). Single port.
