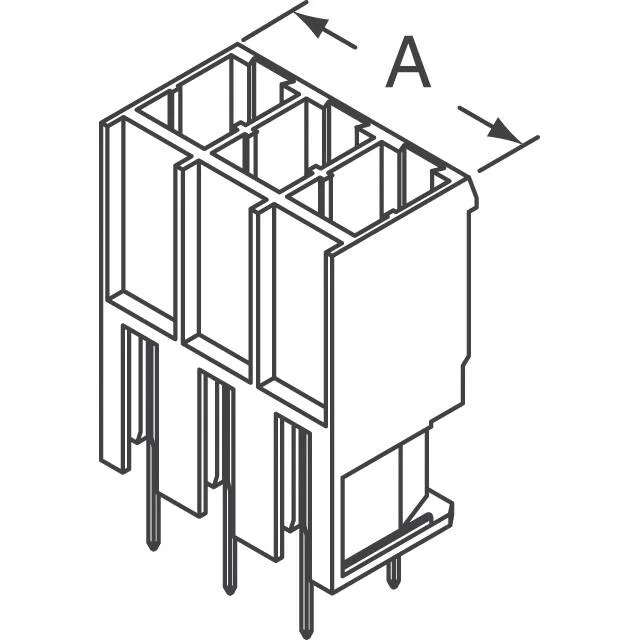

Amphenol VC0300510000G
MPNVC0300510000G
Active
TERM BLOCK HDR 3POS VERT 7.62MM
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series07-762
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | 07-762 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 32 A |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 1.142\" (29.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.197\" (5.00mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
