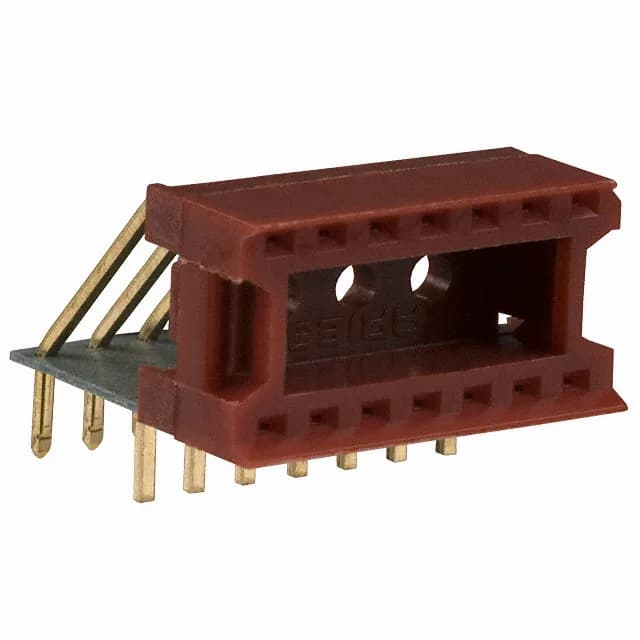

Aries Electronics 14-823-90
MPN14-823-90
Active
CONN IC DIP SOCKET 14POS GOLD
$10.7100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVertisockets™ 800
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Vertisockets™ 800 |
| Mounting | Through Hole, Right Angle, Horizontal |
| Current rating | 1.5 A |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.145\" (3.68mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
| Number of positions or pins | 14 (2 x 7) |
