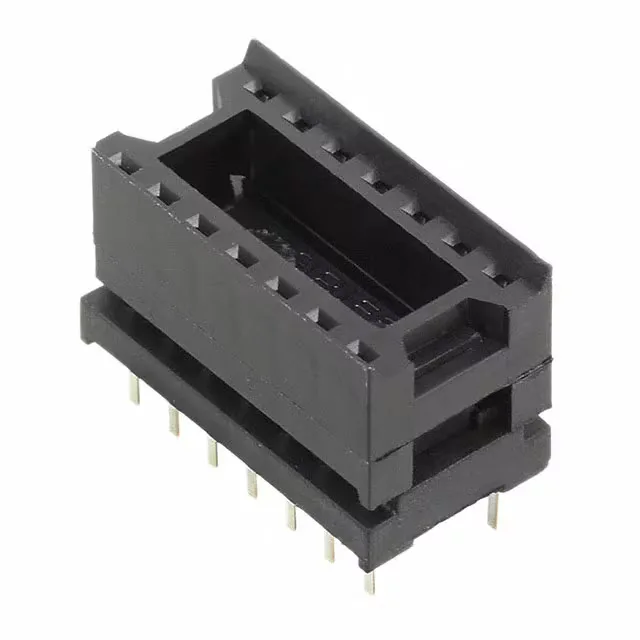

Aries Electronics 14-8400-10
MPN14-8400-10
Active
CONN IC DIP SOCKET 14POS TIN
$3.86Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 8 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame, Elevated |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.140\" (3.56mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
| Number of positions or pins | 14 (2 x 7) |
