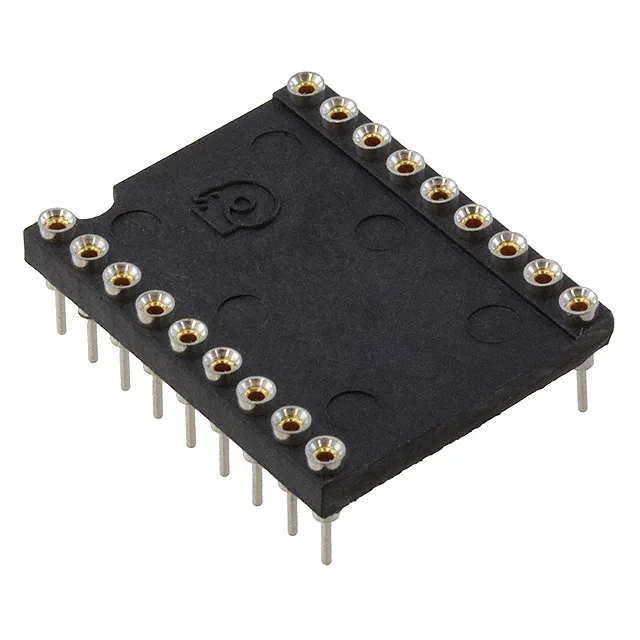

Aries Electronics 18-6513-10
MPN18-6513-10
Active
CONN IC DIP SOCKET 18POS GOLD
$4.37Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLo-PRO®file, 513
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Lo-PRO®file, 513 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
| Number of positions or pins | 18 (2 x 9) |
