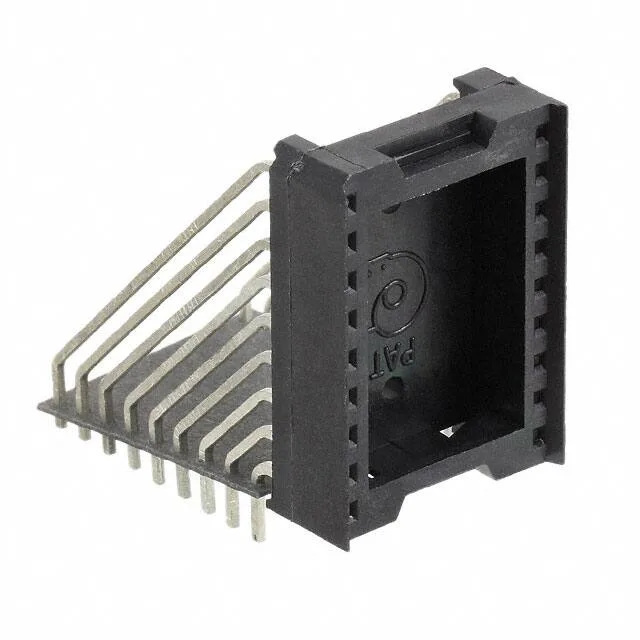

Aries Electronics 18-6810-90T
MPN18-6810-90T
Active
CONN IC DIP SOCKET 18POS TIN
$14.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVertisockets™ 800
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Vertisockets™ 800 |
| Mounting | Through Hole, Right Angle, Vertical |
| Current rating | 1.5 A |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.145\" (3.68mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
| Number of positions or pins | 18 (2 x 9) |
