CONN SOCKET SIP 25POS TIN
$8.12Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | SIP |
| Series | 511 |
| Mounting type | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Termination | Solder |

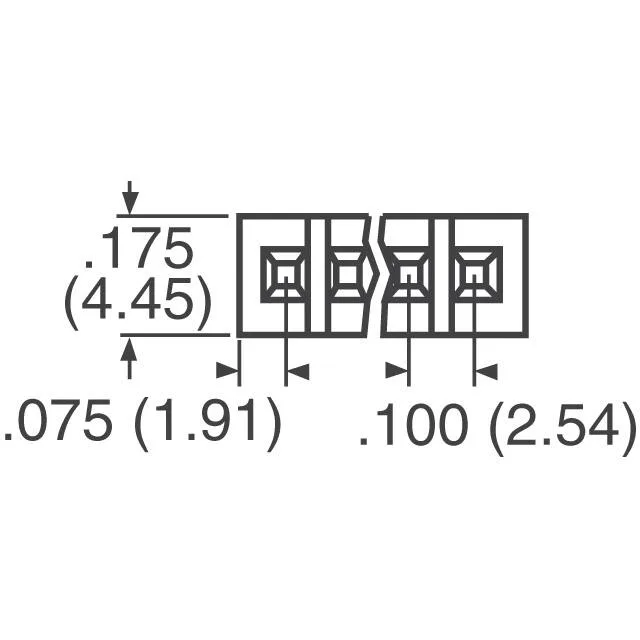

| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.150\" (3.81mm) |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
| Number of positions or pins | 25 (1 x 25) |
Sourcing this connector
Aries Electronics 25-0511-10 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Aries Electronics and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
