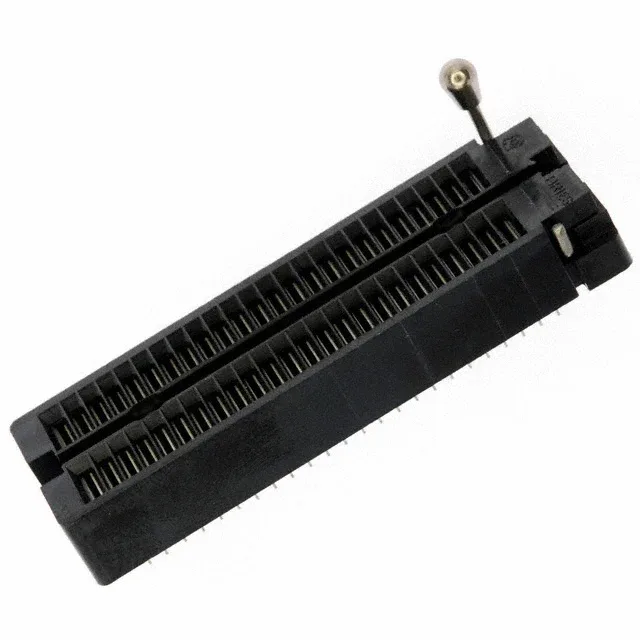

Aries Electronics 48-6554-10
MPN48-6554-10
Active
CONN IC DIP SOCKET ZIF 48POS TIN
$19.99Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series55
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, ZIF (ZIP), 0.6\" (15.24mm) Row Spacing |
| Series | 55 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.110\" (2.78mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
| Number of positions or pins | 48 (2 x 24) |
