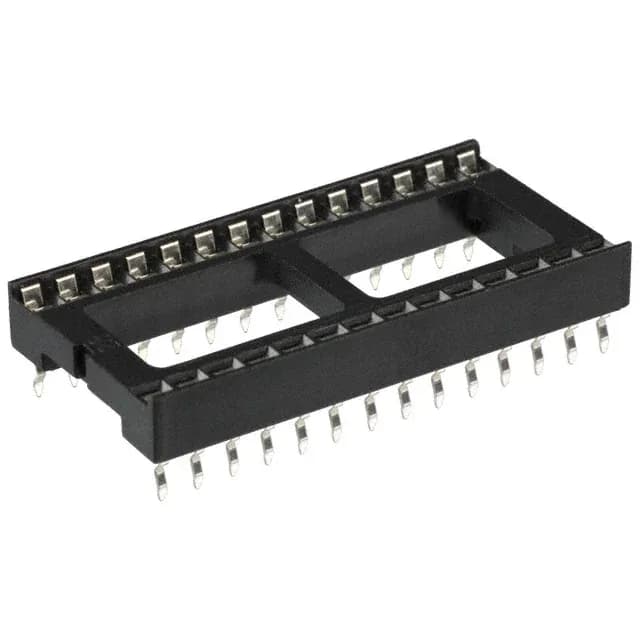

Assmann WSW Components A 28-LC-TR
MPNA 28-LC-TR
Active
CONN IC DIP SOCKET 28POS TIN
$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 85°C |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.124\" (3.15mm) |
| Number of positions or pins | 28 (2 x 14) |
