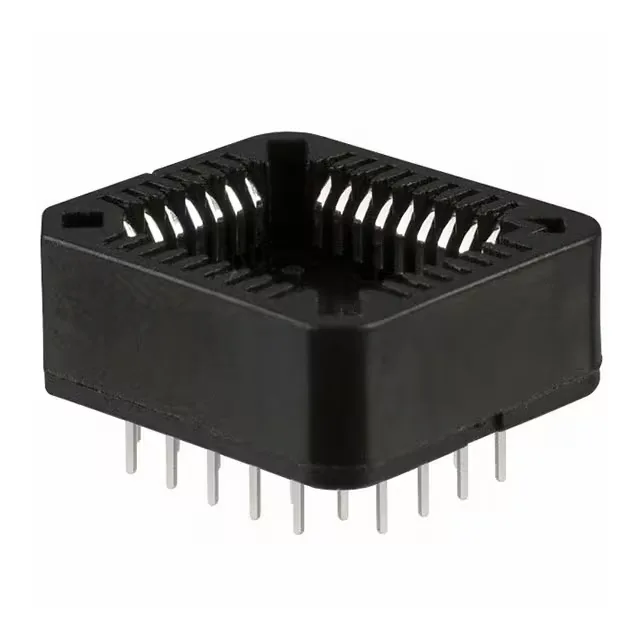

Assmann WSW Components A-CCS 032-Z-T
MPNA-CCS 032-Z-T
Active
CONN SOCKET PLCC 32POS TIN
$1.37Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 15mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.132\" (3.35mm) |
| Contact finish thickness - post | 160.0µin (4.06µm) |
| Contact finish thickness - mating | 160.0µin (4.06µm) |
| Number of positions or pins | 32 (2 x 7, 2 x 9) |
