Assmann WSW Components A-DF 15 AA/Z
MPNA-DF 15 AA/Z
Active

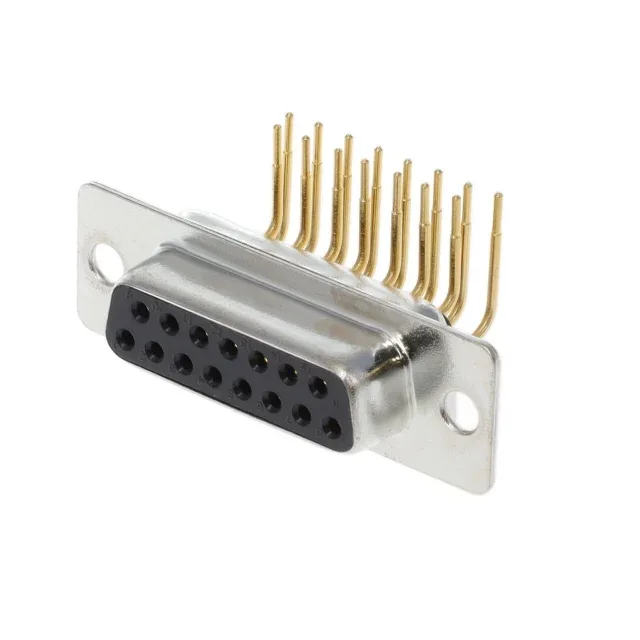

CONN D-SUB RCPT 15POS R/A SLDR
$3.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250VAC |
| Current rating | 5A |
| Contact form | Machined |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.374\" (9.50mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
