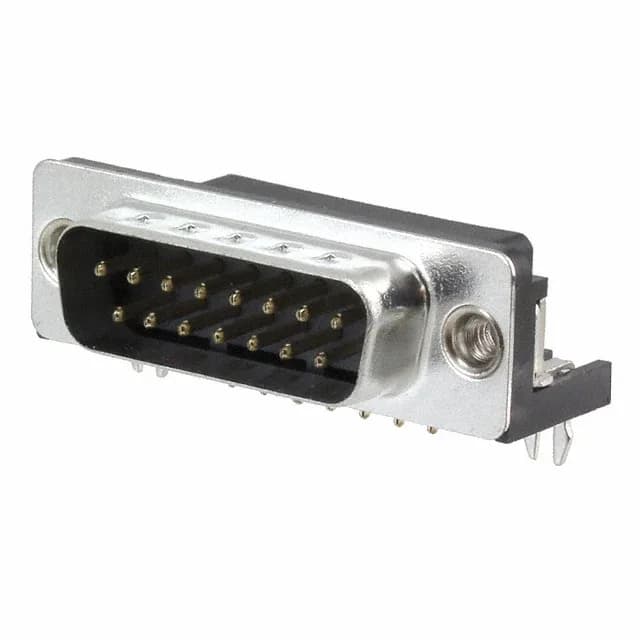

Assmann WSW Components A-DS 15 A/KG-T4S
MPNA-DS 15 A/KG-T4S
Active
CONN D-SUB PLUG 15POS R/A SLDR
$1.1100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | 3A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.319\" (8.10mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
