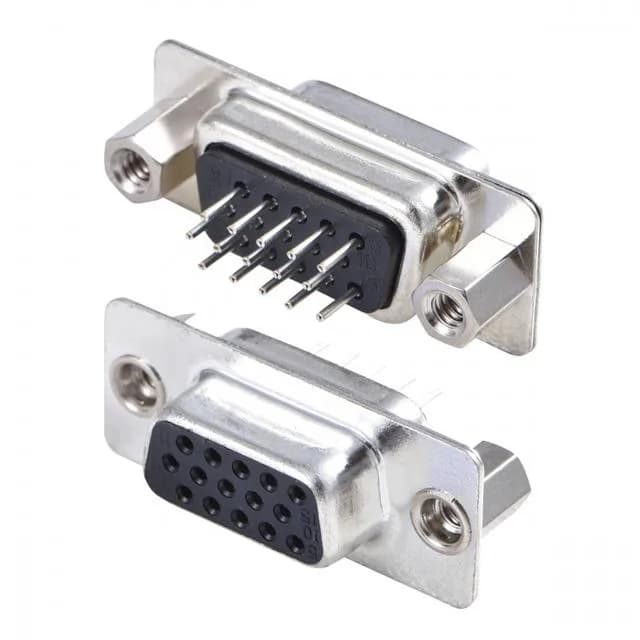

Assmann WSW Components A-HDS 15 PP/Z-UNC2
MPNA-HDS 15 PP/Z-UNC2
Active
CONN D-SUB HD PLUG 15P VERT SLDR
$1.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Through Hole |
| Connector type | D-Sub, High Density |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
